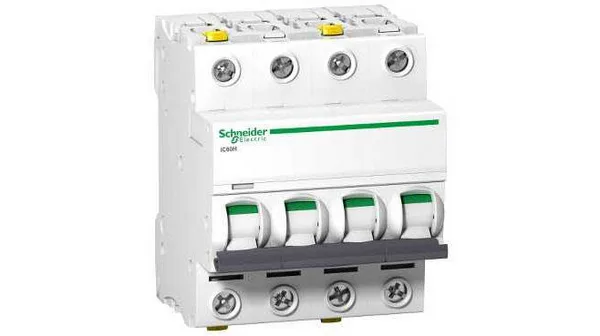

A9F07416
Schneider Electric
WhiteIP20Distribution
Ref. price$224.25
Lead time on requestGet quote
Schneider Electric A9F0 Series
88 variants · Schneider Electric
About the Schneider Electric A9F0 Series
The Schneider Electric A9F0 Series series groups 88 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common application of Distribution, color of White and control type of Toggle. Variants differ by width, so you can match the exact width your application requires using the selection guide below.
Select a variant by
- Width
- 18 mm · 36 mm · 54 mm · 72 mm
Shared specifications
- Application
- Distribution
- Color
- White
- Control type
- Toggle
- Depth
- 78.5 mm
- Electrical life cycles
- 10000 cycles
- Height
- 91 mm
- Main product or component type
- Miniature circuit-breaker
- Mechanical life cycles
- 20000 cycles
- Operating temperature
- -35...70 °C
- Pollution degree
- 3 conforming to EN/IEC 60947-2
- Storage temperature
- -40...85 °C
- Temp operating max
- 70 °C
Variant comparison
| Parameter | A9F07416 | A9F04113 | A9F07310 | A9F07206 | A9F07316 | A9F07320 |
|---|---|---|---|---|---|---|
| Width | 72 mm | 18 mm | 54 mm | 36 mm | 54 mm | 54 mm |
Request a quote on any Schneider Electric A9F0 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
