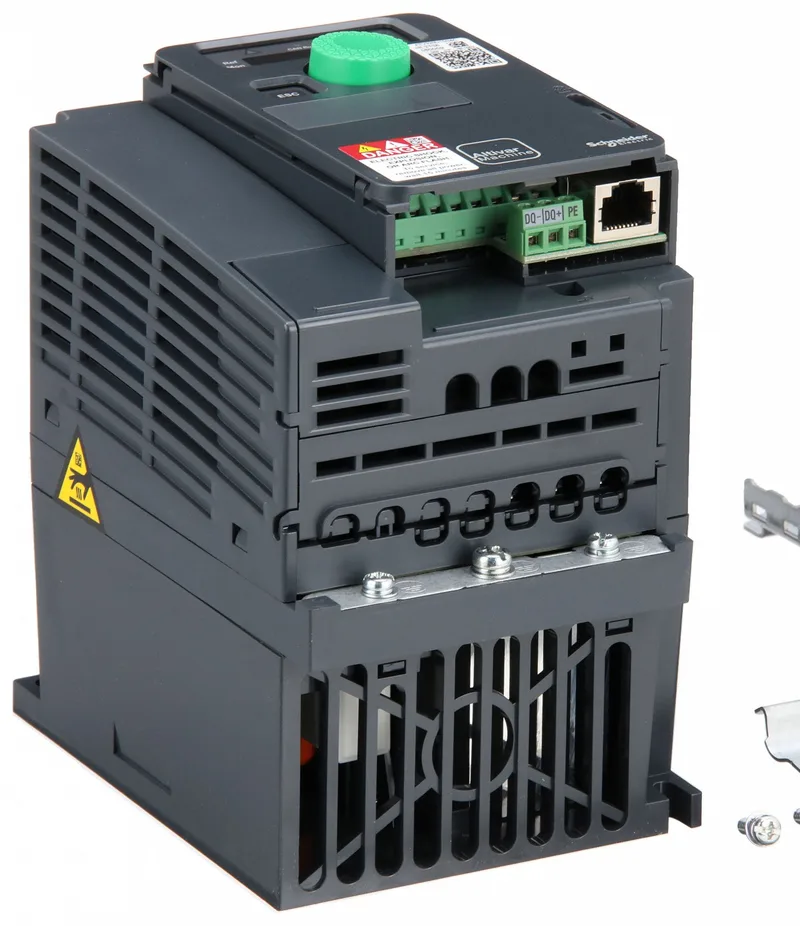

Schneider Electric ATV320U Series

105 variants · Schneider Electric

About the Schneider Electric ATV320U Series

The Schneider Electric ATV320U Series series groups 105 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common main product or component type of Variable speed drive, operating position of Vertical +/- 10 degree and storage temperature of -13...158 °F (-25...70 °C). Variants differ by depth, height and IP rating, so you can match the exact depth your application requires using the selection guide below.

Select a variant by

Depth: 6.2 in (158.0 mm) · 7.008 in (178.0 mm) · 7.9 in (200 mm) · 9.3 in (235.0 mm)
Height: 7.2 in (184.0 mm) · 9.1 in (232.0 mm) · 13.4 in (340 mm)
IP rating: IP20 · IP65 · IP66
Pollution degree: 2 · 3
Width: 5.5 in (140 mm) · 5.9 in (150 mm) · 9.8 in (250 mm)

Shared specifications

Main product or component type: Variable speed drive
Operating position: Vertical +/- 10 degree
Storage temperature: -13...158 °F (-25...70 °C)
Temp operating max: 70 °C
Temp operating min: -25 °C
Temp storage max: 70 °C
Temp storage min: -25 °C

Variant comparison

Parameter	ATV320U07N4WS	ATV320U22M2W	ATV320U40M3C	ATV320U22M2WS	ATV320U11N4WS	ATV320U15N4W
Depth	7.9 in (200 mm)	9.3 in (235.0 mm)	6.2 in (158.0 mm)	9.3 in (235.0 mm)	7.9 in (200 mm)	7.9 in (200 mm)
Height	13.4 in (340 mm)	13.4 in (340 mm)	7.2 in (184.0 mm)	13.4 in (340 mm)	13.4 in (340 mm)	13.4 in (340 mm)
IP rating	IP65	IP66	IP20	IP65	IP65	IP66
Pollution degree	3	3	2	3	3	3
Width	9.8 in (250 mm)	9.8 in (250 mm)	5.5 in (140 mm)	9.8 in (250 mm)	9.8 in (250 mm)	9.8 in (250 mm)

Request a quote on any Schneider Electric ATV320U Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
