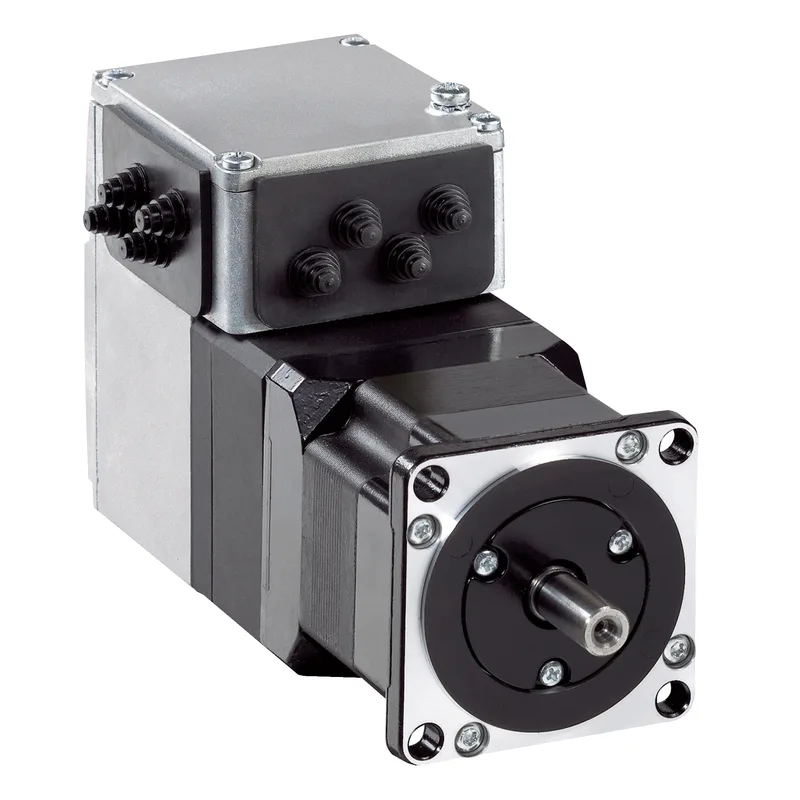

ILA2K571PC1A0
Schneider Electric
1–10 A70 °C-25 °C
Ref. price$3,040.00
Lead time on requestGet quote
Schneider Electric ILA2 Series
108 variants · Schneider Electric
About the Schneider Electric ILA2 Series
The Schneider Electric ILA2 Series series groups 108 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common centring collar diameter of 2.0 in (50 mm), current of 5000 mA maximum continuous 7000 mA peak and feedback type of Single turn encoder.
Shared specifications
- Centring collar diameter
- 2.0 in (50 mm)
- Current
- 5000 mA maximum continuous 7000 mA peak
- Feedback type
- Single turn encoder
- Length
- 5.7 in (145.3 mm)
- Main product or component type
- Motion integrated drive
- Max axial force fa n
- 104 N force pressure) 104 N tensile force)
- Max radial force fr n
- 89 N
- Motor type
- AC Synchronous Servo Motor
- Permissible ambient air temperature around the device
- 221 °F (105 °C) power amplifier 230 °F (110 °C) motor
- Shaft diameter
- 0.4 in (9 mm)
- Shaft end type
- Untapped
- Storage temperature
- -13...158 °F (-25...70 °C)
Request a quote on any Schneider Electric ILA2 Series part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
