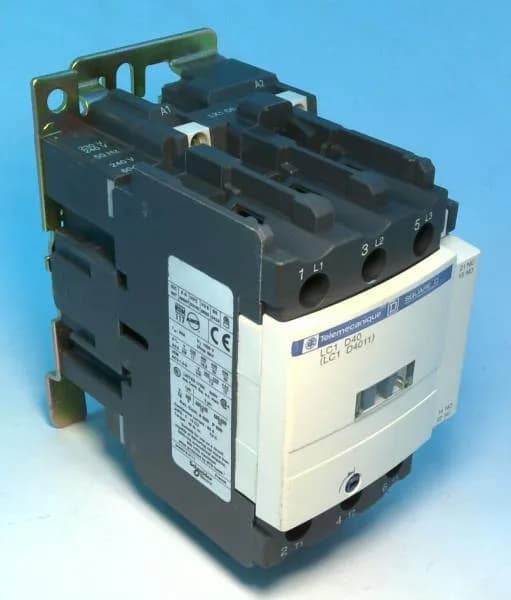

LC1D4011U7
Schneider Electric
Ref. price$184.99
Lead time on requestGet quote
TeSys D Contactor
2012 variants · Schneider Electric
About the TeSys D Contactor
The Schneider Electric TeSys D Contactor series groups 2012 related part numbers, each listed with full specifications, a datasheet where available, and an RFQ option. The listed variants share a common main product or component type of Contactor. Variants differ by application, depth and height, so you can match the exact application your application requires using the selection guide below. The range mixes active and legacy part numbers, so you can source both current TeSys D Contactor variants and discontinued ones from a single page.
Select a variant by
- Application
- Resistive load · Resistive load Motor control
- Depth
- 4.9 in (125 mm) · 5.1 in (130 mm) · 101 mm
- Height
- 5 in (127 mm) · 85 mm
- Utilization category
- AC-1 · AC-1 AC-3 AC-3e · AC-1 AC-3 AC-3e AC-4
- Width
- 3.3 in (85 mm) · 3.8 in (96 mm) · 45 mm
- Electrical life cycles
- 0.8 Mcycles 125 A AC-1 <= 440 V · 1.4 Mcycles 80 A AC-1 <= 440 V · 1.65 Mcycles 32 A AC-3 at Ue 1.4 Mcycles 50 A AC-1 at Ue 1.65 Mcycles 32 A AC-3e at Ue <= 440 V
- IP rating
- IP2X · IP20
- Mechanical life cycles
- 4 Mcycles · 6 Mcycles · 30 Mcycles
Shared specifications
- Main product or component type
- Contactor
Variant comparison
| Parameter | LC1D65008B7 | LC1D65008D7 | LC1D65008F7 | LC1D65008G6 | LC1D65008M7 | LC1D65008P7 |
|---|---|---|---|---|---|---|
| Application | Resistive load | Resistive load | Resistive load | Resistive load | Resistive load | Resistive load |
| Depth | 4.9 in (125 mm) | 4.9 in (125 mm) | 4.9 in (125 mm) | 4.9 in (125 mm) | 4.9 in (125 mm) | 4.9 in (125 mm) |
| Height | 5 in (127 mm) | 5 in (127 mm) | 5 in (127 mm) | 5 in (127 mm) | 5 in (127 mm) | 5 in (127 mm) |
| Utilization category | AC-1 | AC-1 | AC-1 | AC-1 | AC-1 | AC-1 |
| Width | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) | 3.3 in (85 mm) |
| Electrical life cycles | 1.4 Mcycles 80 A AC-1 <= 440 V | 1.4 Mcycles 80 A AC-1 <= 440 V | 1.4 Mcycles 80 A AC-1 <= 440 V | 1.4 Mcycles 80 A AC-1 <= 440 V | 1.4 Mcycles 80 A AC-1 <= 440 V | 1.4 Mcycles 80 A AC-1 <= 440 V |
| IP rating | IP20 | IP20 | IP20 | IP20 | IP20 | IP20 |
| Mechanical life cycles | 6 Mcycles | 6 Mcycles | 6 Mcycles | 6 Mcycles | 6 Mcycles | 6 Mcycles |
Request a quote on any TeSys D Contactor part number and we confirm price, availability and lead time per line — including end-of-life and allocation-constrained variants.
Frequently asked questions
- How do the Schneider Electric TeSys D Contactor variants differ?
- TeSys D Contactor part numbers differ by application, depth, height and utilization category. Use the selection guide above to pick by application.
- How many Schneider Electric TeSys D Contactor part numbers are listed?
- 2012 Schneider Electric TeSys D Contactor part numbers are listed, each with specifications and a datasheet where available.
- How do I get pricing and lead time for Schneider Electric TeSys D Contactor?
- Request a quote (RFQ) for any TeSys D Contactor part number and we confirm price, availability and lead time per line — including end-of-life and hard-to-find variants.
