Schneider Electric LC1D65008P7

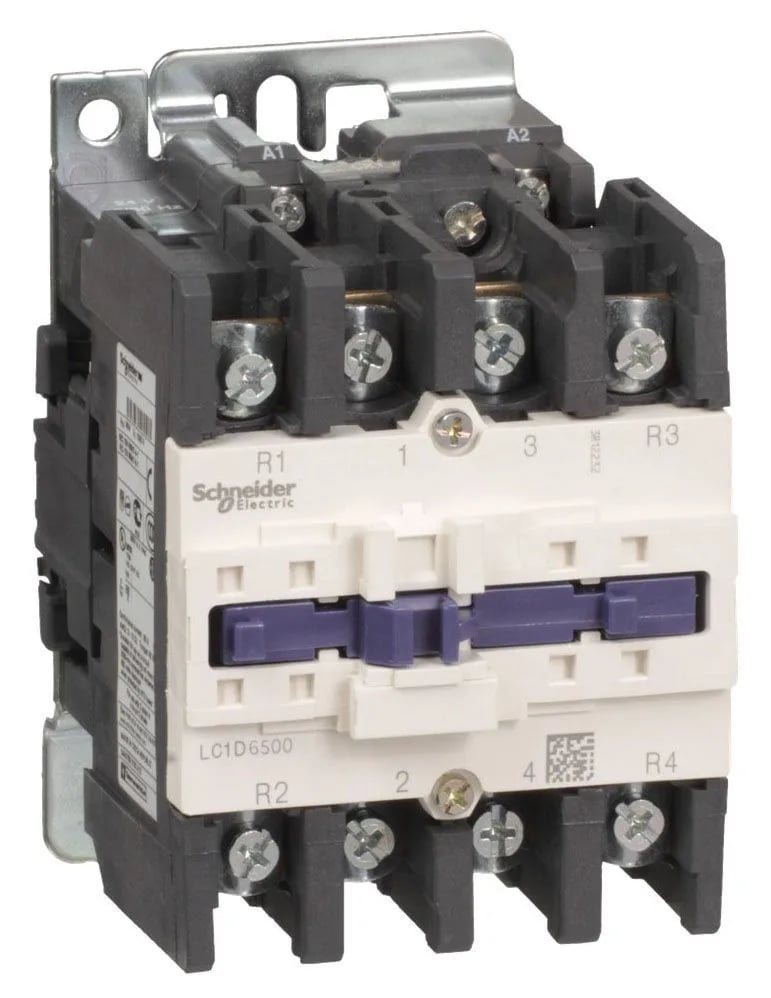

TeSys Deca LC1D65008P7 4-Pole Contactor, 80A AC-1

MPNLC1D65008P7
Obsolete

TeSys Deca LC1D65008P7, 4-pole contactor, AC-1 rated for 80 A resistive load, AC coil 50/60 Hz, screw clamp terminals.

$765.00Ref. price · indicative, final on quote
Schneider Electric LC1D65008P7 datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

LC1D65008P7 key specifications
ParameterValue
Range of productTeSys Deca
Control circuit typeAC 50/60 Hz
Product or component typeContactor
Climatic withstandIACS E10 exposure to damp heat
Coil voltage230 V AC 50/60 Hz
VoltagePower circuit 600 V CSA Power circuit 600 V UL Power circuit 690 V IEC 60947-4-1
Control circuit voltage limits0.3...0.6 Uc (-40...158 °F (-40...70 °C)):drop-out AC 50/60 Hz 0.8...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 50 Hz 0.85...1.1 Uc (-40...140 °F (-40...60 °C)):operational AC 60 Hz 1...1.1 Uc (140...158 °F (60...70 °C)):operational AC 50/60 Hz
[Ue] rated operational voltagePower circuit Power circuit <= 300 V DC
[Uimp] rated impulse withstand voltage6 kV IEC 60947
[Icw] rated short-time withstand current640 A 104 °F (40 °C) - 10 s for power circuit 900 A 104 °F (40 °C) - 1 s for power circuit 110 A 104 °F (40 °C) - 10 min for power circuit 260 A 104 °F (40 °C) - 1 min for power circuit
Breaking capacity1000 A at 440 V for power circuit conforming to IEC 60947
[Ie] rated operational current80 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit

All specifications

LC1D65008P7 additional specifications
ParameterValue
[Ith] conventional free air thermal current80 A (at 140 °F (60 °C)) for power circuit
Inrush power in140 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C)) 160 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C))
Power dissipation per pole9.6 W AC-1
Hold-in power consumption in13 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) 15 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))
Poles description4P
Pole contact composition2 NO + 2 NC
Utilisation categoryAC-1
IP degree of protectionIP20 front face IEC 60529
Mounting supportRail Plate
Connections - terminalsControl circuit: screw clamp terminals 2 0.002...0.004 in² (1...2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.002...0.006 in² (1...4 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.002...0.05 in² (1...35 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 0.002...0.04 in² (1...25 mm²) - cable stiffness: solid without cable end
Pollution degree3
Operating altitude0...9842.52 ft (0...3000 m)
Depth4.9 in (125 mm)
Width3.3 in (85 mm)
Height5 in (127 mm)
Electrical durability1.4 Mcycles 80 A AC-1 <= 440 V
Mechanical durability6 Mcycles
StandardsCSA C22.2 No 14 EN 60947-4-1 EN 60947-5-1 IEC 60947-4-1 IEC 60947-5-1 UL 60947-4-1
RangeTeSys
CategoryUS10I1222357
Operating time4...19 ms opening 12...26 ms closing
Coil technologyWithout built-in suppressor module
Fire resistance1562 °F (850 °C) IEC 60695-2-1
Flame retardanceV1 conforming to UL 94
Heat dissipation4...5 W at 50/60 Hz
Protective coverWith
Average impedance1.5 mOhm - Ith 80 A 50 Hz for power circuit
Device short nameLC1D
Tightening torqueControl circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2 Power circuit 70.8 lbf.in (8 N.m) screw clamp terminals 0.04...0.05 in² (25...35 mm²) hexagonal 0.2 in (4 mm) Power circuit 44.3 lbf.in (5 N.m) screw clamp terminals 0.002...0.04 in² (1...25 mm²) hexagonal 0.2 in (4 mm) Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals pozidriv No 2
Compatibility codeLC1D
Overvoltage categoryIII
Protective treatmentTHIEC 60068-2-30
Contactor applicationResistive load
Mechanical robustnessShocks contactor open 8 Gn for 11 ms) Shocks contactor closed 10 Gn for 11 ms) Vibrations contactor opened 2 Gn, 5...300 Hz) Vibrations contactor closed 3 Gn, 5...300 Hz)
Associated fuse rating125 A gG at 125 A gG at <= 690 V coordination type 2 for power circuit
Maximum operating rate3600 cyc/h at 60 °C
Safety reliability levelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Irms rated making capacity1000 A at 440 V for power circuit conforming to IEC 60947
Permissible ambient air temperature around the device-40...140 °F (-40...60 °C) 140...158 °F (60...70 °C) with derating

Product details

The LC1D65008P7 is a TeSys Deca 4-pole contactor sized for resistive loads up to 80 A in AC-1 duty—what the maintenance team needs for heater banks, oven elements, or lighting circuits. The 2 NO + 2 NC main pole arrangement gives wiring flexibility for break-before-make or interlocking, but make sure your control scheme accounts for both normally-open and normally-closed paths on the power side. Coil is AC 50/60 Hz without a built-in suppressor; planning for an external RC snubber or varistor keeps noise off the control wiring. Rated breaking capacity of 1000 A at 440 V per IEC 60947 covers light overloads, and the IP20 front face means it's panel-mount ready with a protective cover included.

Fits on a rail or plate mount (supplied), occupying a 3.3 in wide by 5 in tall footprint. Control circuit terminals handle 2.5 mm² at 15.05 lbf·in. The side-by-side spacing allows airflow for the 4…5 W heat dissipation. Pole contact composition is 2 NO + 2 NC across all four poles—verify your load distribution matches the available contact arrangement. Associated fuse recommendation is 125 A gG for type-2 coordination.

Environmentally rated for pollution degree 3, operating altitude to 3000 m, and TH treatment per IEC 60068-2-30 for damp heat. Climatic withstand meets IACS exposure. Mechanical durability is 6 Mcycles; electrical durability at 80 A AC-1 is 1.4 Mcycles. Given the mature lifecycle stage, confirm lead time for your required quantity early—availability may tighten as production focus shifts. The Teco cross-reference (if needed) sits outside the TeSys Deca family; we can quote an alternate if the spec matches your project footprint.
