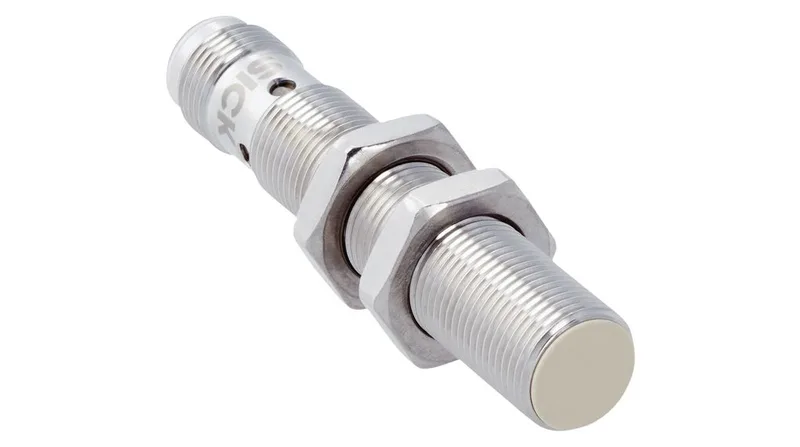

SICK IMF12-04BPPNC0S
MPNIMF12-04BPPNC0S
Inductive Sensor PNP 2kHz 30V 10mA 4mm Connector, M12, 4-Pin, Male IP68 / IP69K IMF
$49.53 – $69.28Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Series | IMF |
| Parameter | Value |
|---|---|
| Sensing distance, max. | 4 mm |
| Parameter | Value |
|---|---|
| Operating voltage, max. | 30 V |
| Operating voltage, min. | 10 V |
| Termination type | Connector, M12, 4-Pin, Male |
| Parameter | Value |
|---|---|
| Switching frequency | 2 kHz |
| Load current | 200 mA |
| Parameter | Value |
|---|---|
| Mounting type | Flush Mount |
| Length | 65 mm |
| Housing material | Stainless Steel |
| Parameter | Value |
|---|---|
| Operating temperature, max. | 100 °C |
| Operating temperature, min. | -40 °C |
| IP protection rating | IP68;IP69K |
| Parameter | Value |
|---|---|
| Construction form | M12 |
| Current consumption | 10 mA |
| Repeat accuracy (%) | 2 % |
| Inductive sensor output type | PNP |
MPN
IMF12-04BPPNC0S
