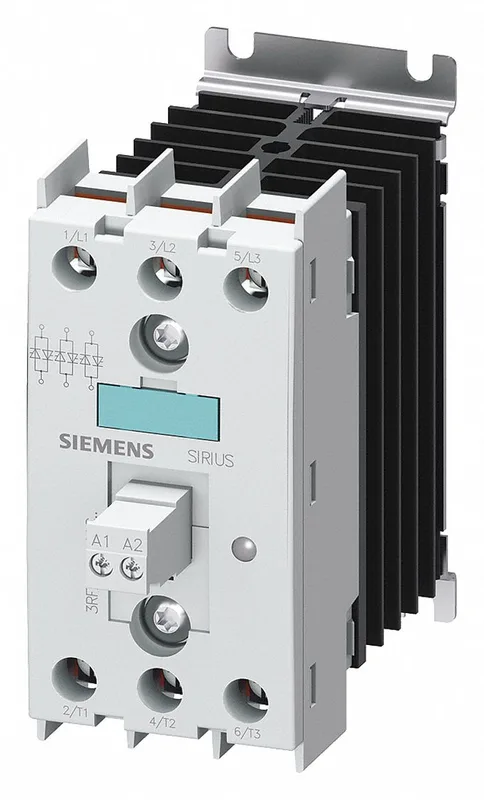

The Siemens 3RF2410-1AC45 is a SIRIUS solid-state contactor — a three-phase controlled, zero-point switching device rated for 10.5 A in AC-51 duty (resistive loads like heaters). The zero-point switching means it turns on at the voltage zero crossing, which limits inrush and reduces electrical noise on the line; useful when you're feeding a heater bank or a transformer and don't want the thyristor switching transient coupling into adjacent control wiring. It handles a supply range of 48 to 600 VAC at 50/60 Hz, with an insulation voltage rated at 600 V. The control side draws 30 mA at 30 VDC, with a minimum operational current of 500 mA — so don't plan on switching a dry-contact signal through it; this part wants a real load.
Width is 45 mm, depth 96.5 mm, height 95 mm — fits a standard 45 mm slot in a control panel. Side-by-side mounting is allowed, but check the derating curve above 40 °C; the part is rated for full current up to that ambient. Terminals are screw-type for both main and control circuits. Main contacts accept 1x (0.5 to 2.5 mm²) solid or 2x (0.5 to 1.0 mm²) stranded; power wiring up to 6 mm² is possible. AWG equivalents for main contacts are 2x (14 to 10). Strip carefully — the terminal design doesn't forgive stray strands.
The AC-51 rating of 10.5 A is the resistive load rating — that's the current it can switch for heater elements, incandescent lamps, or resistive furnaces. For motor loads (AC-53 or AC-55a), you'd need to derate significantly; this part is not intended for direct motor switching without additional coordination. The UL 508 rating is 7 A, which is the conservative figure for North American panel builds — use that for UL-listed equipment. The I²t value of 450 A²·s tells you the let-through energy under fault conditions — useful for sizing upstream fuses. Siemens recommends 3NA3801 fuses (or equivalent) at voltages up to 460 V, with a note that these fuses have a smaller rated current than the semiconductor relay itself. That's intentional: the fuse protects the thyristor, not the load. No IP rating is listed, so it's intended for enclosure mounting only, not washdown areas.
