S00 frame, 4 NO, 24 VDC coil — panel fit and switching capacity

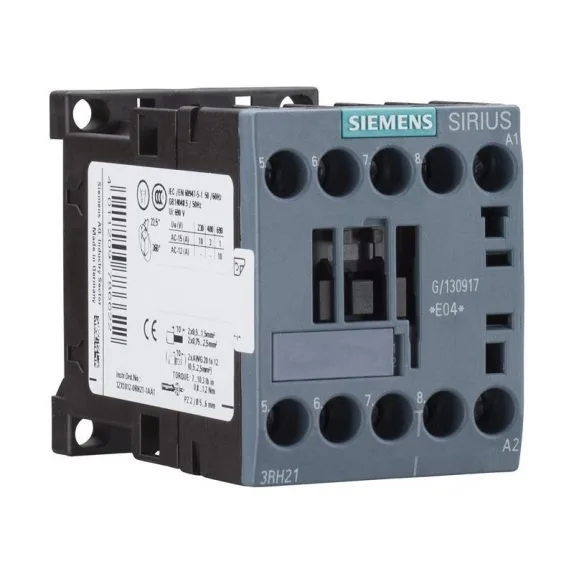

The 3RH2140-1FB40: It carries 4 normally-open instantaneous contacts rated for 10 A at both 24 V and 230 V, with a mechanical life of 30 million operations typical — the contact set handles pilot-duty loads, PLC inputs, and signal interlocking in motor starter assemblies. The DC coil is rated 24 V with an integrated diode surge suppressor, drawing 4 W closing power — the diode clamps the flyback spike, so no external snubber is needed on the control circuit.
Lifecycle and compliance — current production, RoHS dated
RoHS compliance date is 10/01/2009 — the part meets the EU RoHS substance restrictions effective from that date. No UL or CSA listing is stated in the spec record; verify site-specific acceptance with the local authority.
