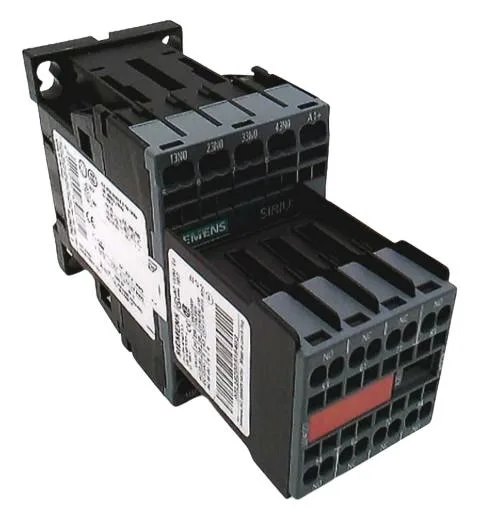

Siemens 3RH2262-2BB40 SIRIUS Auxiliary Contactor, 24 V DC

MPN3RH2262-2BB40

Active

Siemens SIRIUS 3RH2262-2BB40 auxiliary contactor, 24 V DC coil, 10 A rated current, 6 instantaneous contacts, size S00, screw and snap-on mounting on 35 mm DIN rail.

$29.63Ref. price · indicative, final on quote

Add to RFQ

Siemens 3RH2262-2BB40 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

3RH2262-2BB40 — Identification
Parameter	Value
Contactor frame size	S00

3RH2262-2BB40 — Ratings & Performance
Parameter	Value
Rated operational current, AC-12, max.	10 A
Rated value @ 400 V	3 A
Rated value @ 500 V	2 A
Rated value @ 690 V	1 A
Rated value @ 230 V	6 A
Rated value @ 24 V	10 A
Rated value @ 60 V	4.7 A
Rated value @ 110 V	3 A
Rated value @ 220 V	1.2 A

3RH2262-2BB40 — Control & Coil
Parameter	Value
Control supply voltage type	DC

3RH2262-2BB40 — Contacts & Poles
Parameter	Value
Auxiliary contact reliability	1 faulty switching per 100 million (17 V, 1 mA)

3RH2262-2BB40 — Connection & Mounting
Parameter	Value
Conductor cross-section, solid or stranded	2x (0,5 ... 4 mm²)
Conductor cross-section, finely stranded w/ ferrule	2x (0.5 ... 2.5 mm²)
Mounting method	screw and snap-on mounting onto 35 mm DIN rail

3RH2262-2BB40 — Durability
Parameter	Value
Durability (operating cycles, typ.)	10 000 000

3RH2262-2BB40 — Environmental
Parameter	Value
Operating temperature range	-25 ... +60 °C
Storage temperature range	-55 ... +80 °C
Installation altitude, max.	2 000 m

3RH2262-2BB40 — Mechanical
Parameter	Value
Width	45 mm
Height	70 mm
Depth	121 mm

3RH2262-2BB40 — Specifications
Parameter	Value
At AC	10 000 1/h

Product details

Auxiliary contactor for control-circuit switching

The Siemens 3RH2262-2BB40 is a SIRIUS auxiliary contactor, size S00, designed for switching control circuits in motor starter and industrial panel applications. This voltage-dependent rating means the part is suited for both low-voltage DC control and higher-voltage AC signal isolation.

Dimensions are 45 mm wide, 70 mm high, and 121 mm deep — the 45 mm width occupies two standard 22.5 mm DIN rail modules, so plan for that slot count in the panel layout.

Sourced to order against the BOM quantity through independent distribution. Compliance documentation includes RoHS and REACH (substance prohibition date 10/01/2009).
