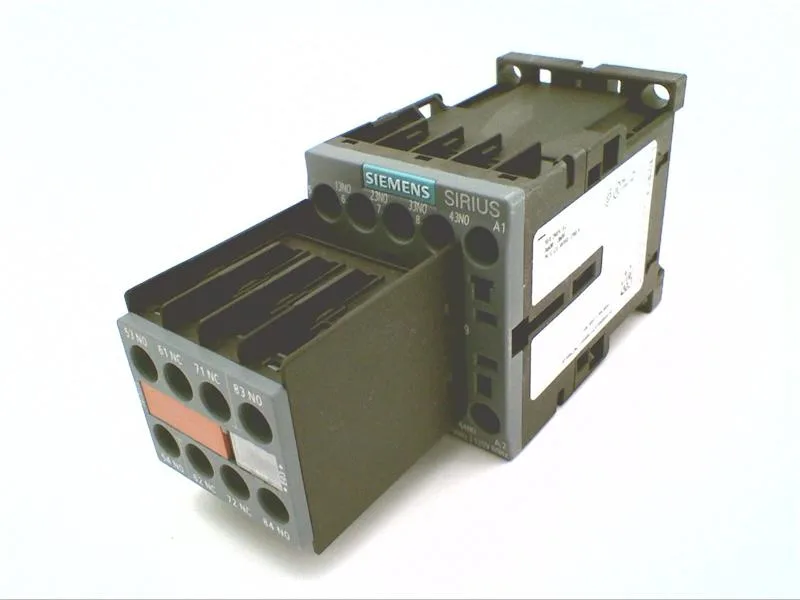

Siemens 3RH2262-1AK60 is a SIRIUS auxiliary contactor, Size S00, packing six instantaneous contacts in a 45 mm wide housing that snaps onto standard 35 mm DIN rail. Rated for 10 A, 6 A, and 3 A per-contact thermal currents. Mechanical life of 10 000 000 operations, arcing time 10–15 ms.
Mounting and clearances
The S00 frame measures 57.5 mm tall × 45 mm wide × 117 mm deep. Mount on a vertical surface; it allows ±180° rotation and ±22.5° tilt forward/backward. Required clearance: 10 mm upward, 10 mm downward, 10 mm forward, 6 mm to the side — keeps heat from the 6 contacts dissipating.
Contact ratings across voltages
The 6 contacts are instantaneous; switching frequency at DC rated for 10 000 operations per hour.
Lifecycle and sourcing
RoHS compliance documented with a substance prohibition date of 10/01/2009 — no issues for current regulatory filings.
