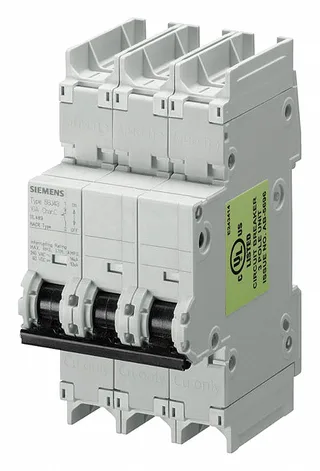

Siemens SENTRON 5SJ4 5SJ4360-7HG41, 3-pole C-curve miniature circuit breaker, 400 V AC, 10 kA (EN 60898) / 15 kA (IEC 60947-2), 70 mm depth, 54 mm width.
| Parameter | Value |
|---|---|
| Brand name | SENTRON |
| Number of poles | 3 |
| Pole configuration | 3P |
| Suitability for operation | Mechanical engineering / industry |
| Parameter | Value |
|---|---|
| Tripping characteristic (curve) | C |
| Breaking capacity per EN 60898 | 10 kA |
| Breaking capacity per IEC 60947-2 | 15 kA |
| Overvoltage category | 3 |
| IP protection class | IP20, with connected conductors, IP 40 in the handle range |
| Pollution degree | 3 |
| Parameter | Value |
|---|---|
| Supply frequency range | 50/60 Hz |
| Power loss per pole at rated current (AC, hot) | 6.5 W |
| Mechanical service life (operating cycles, typ.) | 10 000 |
| Neutral conductor switching | No |
| Parameter | Value |
|---|---|
| Modular width units | 3 |
| Mounting position | any |
| Width | 54 mm |
| Height | 110 mm |
| Depth | 70 mm |
| Installation depth | 70 mm |
| Terminal tightening torque, max. | 75 °C |
| Terminal tightening torque, min. | -40 °C |
| Combined terminal, top | Yes |
| Combined terminal, bottom | Yes |
| Fastening method | on standard mounting rail |
| Sealable | Yes |
| Accepts supplementary devices | Yes |
| Parameter | Value |
|---|---|
| Halogen-free | Yes |
| Silicone-free | Yes |
| Vibration resistance (IEC 60068-2-6) | ±1 mm at 5 to 25 Hz; 50 m/s² at 25 to 150 Hz |
Depth is 70 mm, so check panel clearance before committing a row.
Rated insulation voltage 440 V AC, operating voltage 400 V AC, DC rating 60 V; breaking capacities 10 kA and 15 kA. Vibration resistance is spec'd at 50 m/s² over 25–150 Hz and 60 m/s² at 35 Hz for 4 seconds, which is robust for mounted equipment on vibrating surfaces.
IP20 with conductors connected, IP40 in the handle area – adequate for clean indoor panel environments.
Operating ambient temperature from -40 °C to +75 °C, with max 95% humidity. It withstands vibration up to 50 m/s² in the 25–150 Hz range and 60 m/s² at 35 Hz for 4 seconds.
