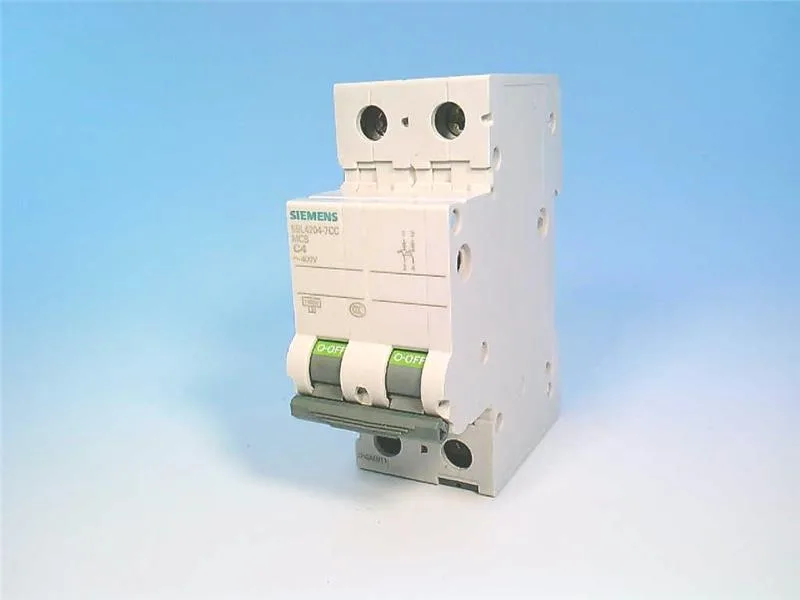

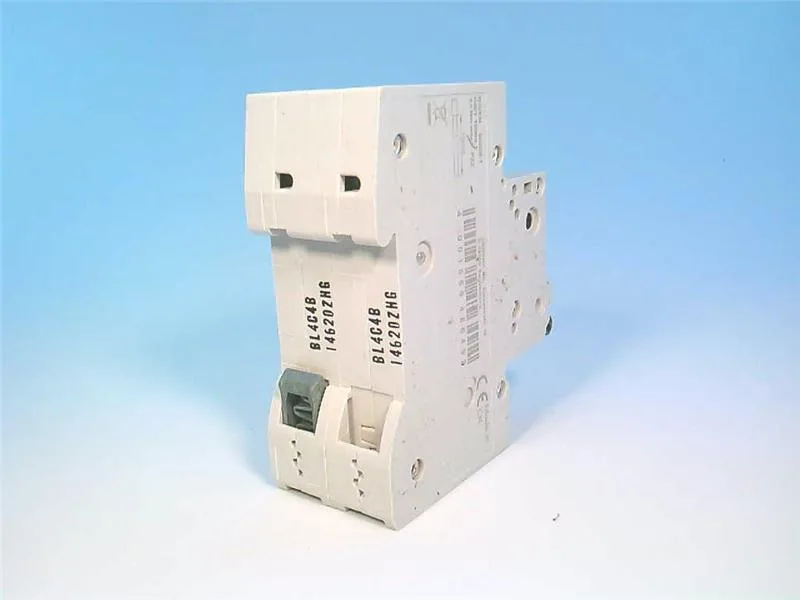

Siemens 5SL4204-7CC — 2-Pole MCB (DIN Rail)

Siemens 5SL4204-7CC SENTRON MCB, 2-pole C-curve 4A 10kA

MPN5SL4204-7CC
Active

Siemens SENTRON 5SL4204-7CC miniature circuit breaker, 2-pole, C-curve, 4 A, 10 kA breaking capacity at 400 V AC per EN 60898.

$25.65Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL4204-7CC — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentResidential buildings/infrastructure
5SL4204-7CC — Electrical
ParameterValue
Number of poles2
Supply voltage at AC rated value400 V
5SL4204-7CC — Protection
ParameterValue
Tripping characteristic classC
Overvoltage categoryIII
5SL4204-7CC — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SL4204-7CC — Environmental
ParameterValue
Pollution degree2
5SL4204-7CC — Specifications
ParameterValue
According to EN 60898 rated value10 kA
Energy Limitation Class3

Product details

The C-curve means it holds through moderate inrush (5–10× rated current), so it's the usual choice for general-purpose loads like lighting circuits, socket outlets, and small appliances where you don't want nuisance trips from a motor start or capacitor bank.

The 10 kA breaking capacity at 400 V AC per EN 60898 tells you this breaker can safely clear a bolted fault up to 10,000 A without welding its contacts or rupturing the case. The 4 A rating limits the continuous load to about 0.96 kW per pole at 240 V or 2.76 kW total on a 400 V two-phase circuit — sized for a lighting subfeed or a small appliance group, not a main breaker. Power loss per pole is 1.2 W in hot operating state at rated current, which matters for thermal coordination inside a crowded enclosure.

Halogen-free and silicon-free construction — no corrosive off-gassing under fault, which matters when the breaker shares a cabinet with sensitive electronics. Overvoltage category III (distribution-level), pollution degree 2 (non-conductive dust only).

Frequently asked questions

Where can I buy the 5SL4204-7CC and get a price?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm commercial offer.

Will the 5SL4204-7CC drop into a panel specified for the 5SL6220-7?

Yes, the 5SL4204-7CC shares the same 76 mm depth, 36 mm width (2 MW), 90 mm height, DIN-rail mounting, and C-curve characteristic as the 5SL6220-7. The only difference is the 5SL6220-7 is a 20 A breaker with a 6 kA breaking capacity per EN 60898, while this 4 A unit offers 10 kA. No rewiring or panel modification needed — just swap the breaker.
