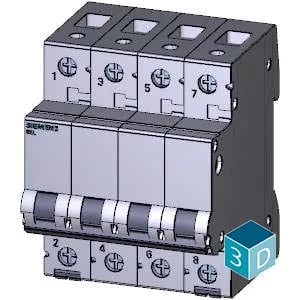

Siemens 5SL5406-7RC — 4-Pole MCB (DIN Rail)

Siemens 5SL5406-7RC SENTRON MCB, 4P C6, 10 kA DC, 880 V

MPN5SL5406-7RC

Siemens SENTRON 5SL5406-7RC, 4-pole DC miniature circuit breaker, C6 characteristic, 10 kA breaking capacity, 880 V DC max, 4 MW units, IP20.

Siemens 5SL5406-7RC datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL5406-7RC — Identification
ParameterValue
Brand nameSENTRON
Application suitabilityResidential buildings/infrastructure
5SL5406-7RC — Ratings
ParameterValue
Number of poles4
Pole configuration4P
5SL5406-7RC — Protection
ParameterValue
Tripping characteristic (trip curve)C
Overvoltage categoryII
Pollution degree2
Degree of protection (IP)IP20, with connected conductors
5SL5406-7RC — Mechanical
ParameterValue
Width in modular units4
Width72 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Tightening torque, max.75 °C
Tightening torque, min.-40 °C
SealableYes
5SL5406-7RC — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
5SL5406-7RC — Performance
ParameterValue
Power loss per pole, AC (hot state, at In)1.6 W

Product details

The 6 A rating is at 30 °C; above that, derate to 5.5 A at 40 °C, 5.3 A at 45 °C, 5.1 A at 50 °C, 4.8 A at 55 °C, and 4.5 A at 60 °C. If the panel ambient runs 50 °C, size the load to 5.1 A, not 6 A. The 880 V DC maximum rating covers series-string DC bus voltages common in solar, UPS, or traction battery systems.

Deployment context

Rated for residential buildings and infrastructure — think DC distribution in telecom shelters, solar combiner boxes, or battery banks. Mount in any position; the sealable cover allows locking against unauthorized operation.

Frequently asked questions

Where can I buy 5SL5406-7RC and how do I get a price?

The part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the closest functional second-source to 5SL5406-7RC?

The 5SL3640-7MB is a 4-pole AC miniature circuit breaker (400 V AC, 40 A, C characteristic) in the same SENTRON 5SL family and identical footprint (76 mm depth, 72 mm width, 90 mm height). It is not a direct DC substitute — the 5SL5406-7RC is the DC-rated variant for 880 V DC systems.

What compliance documentation does this brand provide for 5SL5406-7RC?

The part is halogen-free and silicon-free. The manufacturer provides standard declarations of conformity (CE, UKCA) and material compliance (RoHS, REACH) upon request through the RFQ process.
