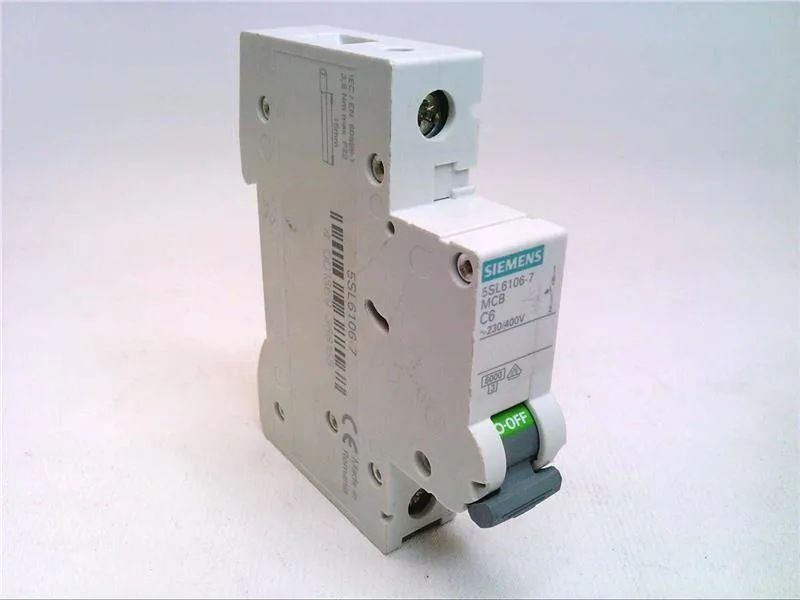

Siemens 5SL6106-7 — 1-Pole MCB (DIN Rail)

Siemens 5SL6106-7 SENTRON MCB, 1P C 6A 6kA

MPN5SL6106-7
Active

Siemens SENTRON 5SL6 series, miniature circuit breaker, 1-pole, C-curve, 6 A, 6 kA breaking capacity per EN 60898 and IEC 60947-2, 230/400 V AC, 1 MWU wide.

$3.05Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL6106-7 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityResidential buildings/infrastructure
5SL6106-7 — Electrical & Protection
ParameterValue
Tripping characteristic classC
Energy limitation class3
Overvoltage categoryIII
5SL6106-7 — Mounting & Connection
ParameterValue
Mounting positionany
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SL6106-7 — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree2
Halogen-freeYes
Silicone-freeYes

Product details

The Siemens 5SL6106-7 is a SENTRON miniature circuit breaker — one pole, C-curve, rated 6 A, with a 6 kA breaking capacity certified to both EN 60898 and IEC 60947-2.

The IP20 rating applies with conductors connected, so it's strictly for use inside a closed panel or enclosure. Mounting position is unrestricted, which simplifies layout in tight cabinets.

What else fits the same footprint

The 5SL6120-7 is the same physical part (1-pole, 1 MWU, C-curve, same 6 kA, same dimensions) but rated 20 A instead of 6 A. If your load current is higher but the panel layout and breaking capacity requirement are identical, that's the direct swap — no rewiring, no DIN-rail repositioning. The 5SL4363-7 is a 3-pole version with a 10 kA rating; it occupies 3 MWU and is a different animal for three-phase feeders.

Frequently asked questions

What is the breaking capacity of 5SL6106-7?

6 kA per both EN 60898 and IEC 60947-2 at 230/400 V AC. That covers standard residential and light commercial distribution boards.

Will 5SL6106-7 drop into a panel specified around 5SL6120-7?

Yes — same 1-pole, 1 MWU (18 mm) footprint, same 76 mm depth, same DIN-rail mounting. The only difference is the current rating: 6 A here versus 20 A on the 5SL6120-7.

Where can I buy 5SL6106-7?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.
