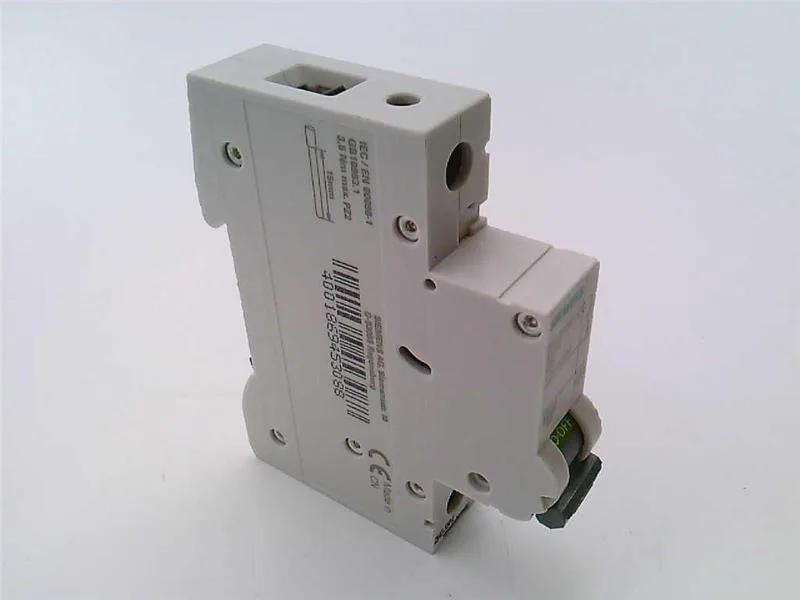

Siemens 5SL6106-7CC — 1-Pole MCB (DIN Rail)

Siemens 5SL6106-7CC SENTRON MCB, 1P C-curve 6A, 6kA

MPN5SL6106-7CC
Active

Siemens SENTRON 5SL6106-7CC, miniature circuit breaker, 1-pole, C-curve, 6 A, 6 kA per EN 60898, 400 V AC, 18 mm width.

$42.00Ref. price · indicative, final on quote
Siemens 5SL6106-7CC datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SL6106-7CC — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Number of poles1
Pole design1P
Application suitabilityResidential buildings/infrastructure
5SL6106-7CC — Electrical & Protection
ParameterValue
Tripping characteristic classC
Energy limitation class3
Overvoltage categoryIII
5SL6106-7CC — Mounting & Connection
ParameterValue
Mounting positionany
Width18 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Modular width units1
Torque, min.-40 °C
Torque, max.75 °C
SealableYes
5SL6106-7CC — Environmental
ParameterValue
IP protection classIP20, with connected conductors
Pollution degree2
Halogen-freeYes
Silicone-freeYes

Product details

Siemens 5SL6106-7CC — 1-pole C-curve MCB, 6 A, 6 kA

The 6 kA rating per EN 60898 is the service breaking capacity; for industrial panels requiring IEC 60947-2 verification, check the specific installation standard.

Fit and panel integration

Width of 18 mm (1 MWU) — occupies one slot on a DIN rail. Mounting position any, so vertical or horizontal rail orientation works. IP20 with connected conductors; pollution degree 2, overvoltage category III. Sealable design allows tamper-proofing with a lead seal. Halogen-free and silicon-free construction avoids outgassing concerns in sensitive environments.

Frequently asked questions

What is the breaking capacity of the 5SL6106-7CC?

6 kA according to EN 60898 at 400 V AC. This is the service breaking capacity for the 1-pole unit.

What is the width of the 5SL6106-7CC?

18 mm, which is 1 modular width unit (MWU). It occupies one DIN-rail slot.

Where can I buy the 5SL6106-7CC?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the difference between the 5SL6106-7CC and the 5SL4363-7?

The 5SL4363-7 is a 3-pole version with a 10 kA breaking capacity per both EN 60898 and IEC 60947-2, and a 54 mm width (3 MWU). The 5SL6106-7CC is 1-pole, 6 kA, 18 mm wide. They are not form-fit interchangeable — the 3-pole unit occupies three times the DIN-rail space and has a higher interrupting rating.

MPN
5SL6106-7CC
