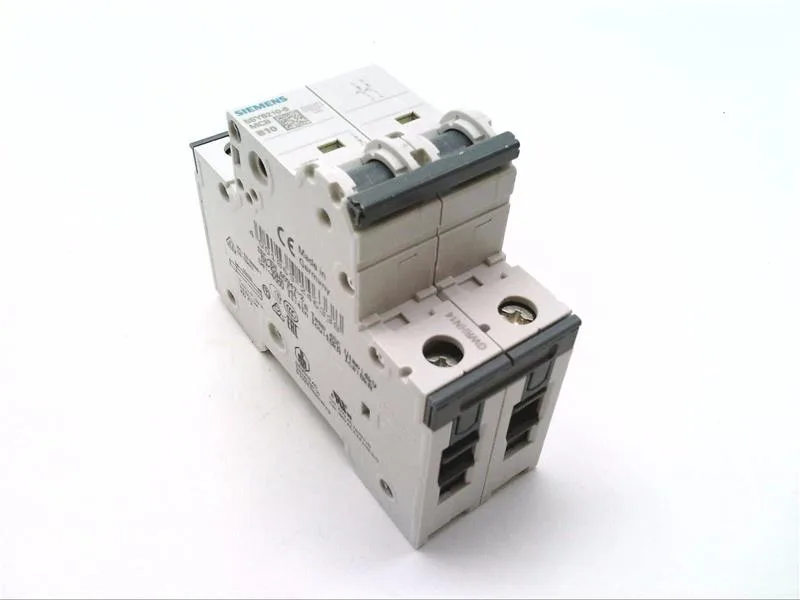

Siemens 5SY6210-6 — 2-Pole MCB (DIN Rail)

Siemens 5SY6210-6 SENTRON MCB, 2P B-Char, 6kA/15kA

MPN5SY6210-6
Active

Siemens SENTRON 5SY6210-6, 2-pole miniature circuit breaker, B characteristic, 6 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, width 36 mm, depth 76 mm.

$18.52Ref. price · indicative, final on quote
Siemens 5SY6210-6 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6210-6 — Identification
ParameterValue
Product designationMiniature circuit breaker
Brand nameSENTRON
Application environmentMechanical engineering / industry
5SY6210-6 — Electrical
ParameterValue
Number of poles2
5SY6210-6 — Protection
ParameterValue
Tripping characteristic classB
Overvoltage categoryIII
5SY6210-6 — Mechanical
ParameterValue
Modular width units2
Width36 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Mounting positionany
Min.-40 °C
Max.75 °C
Protection degree (IP)IP20, with connected conductors
5SY6210-6 — Environmental
ParameterValue
Pollution degree3
5SY6210-6 — Specifications
ParameterValue
At AC rated value400 V
According to EN 60898 rated value6 kA
With single-phase operation at AC rated value440 V
Energy Limitation Class3

Product details

The same part also carries a 5 kA rating per UL 1077, so it qualifies for North American supplementary protection duty.

IP20 with conductors connected, so it lives inside a closed enclosure.

Halogen-free and silicon-free construction. Rated for ambient temperatures from -40 °C to 75 °C, with humidity derating above 55 °C (95% RH to 55 °C, 55% to 70 °C, 35% to 75 °C). Pollution degree 3, overvoltage category III. Sealable for lockout/tagout. Meets IEC/EN 60898-1 and IEC/EN 60947-2, plus UL 1077 and CSA C22.2 No. 235.

Frequently asked questions

What is the breaking capacity of 5SY6210-6?

6 kA per EN 60898-1, 15 kA per IEC 60947-2, and 5 kA per UL 1077 — so it covers domestic, industrial, and North American supplementary protection duty from the same unit.

Will 5SY6210-6 drop into a panel specified around 5SY4140-7?

Both are 2-pole SENTRON MCBs on the same DIN-rail footprint, so the mechanical fit is identical. The difference is electrical: 5SY6210-6 carries a B curve and dual 6 kA / 15 kA breaking capacity, while 5SY4140-7 is a different rating within the same family. Check the specific current rating and characteristic on your BOM before swapping.

Where can I buy 5SY6210-6?

Sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

MPN
5SY6210-6
