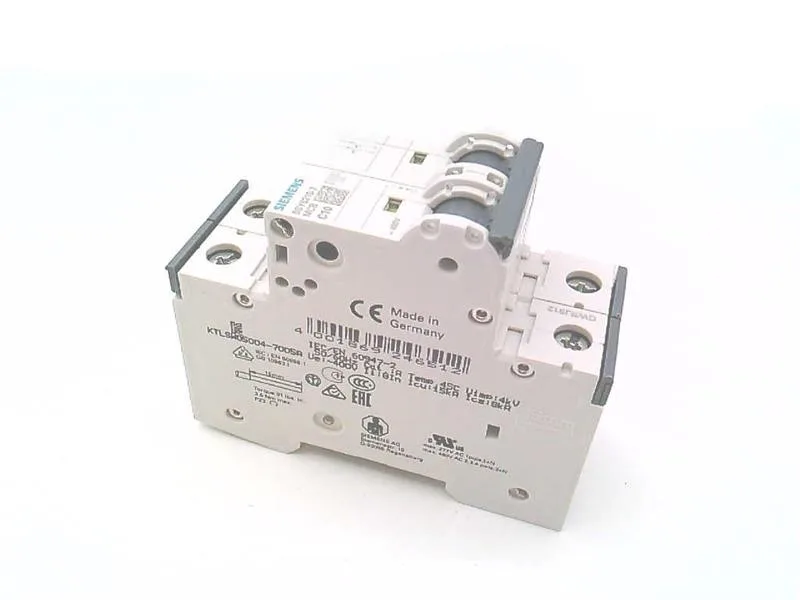

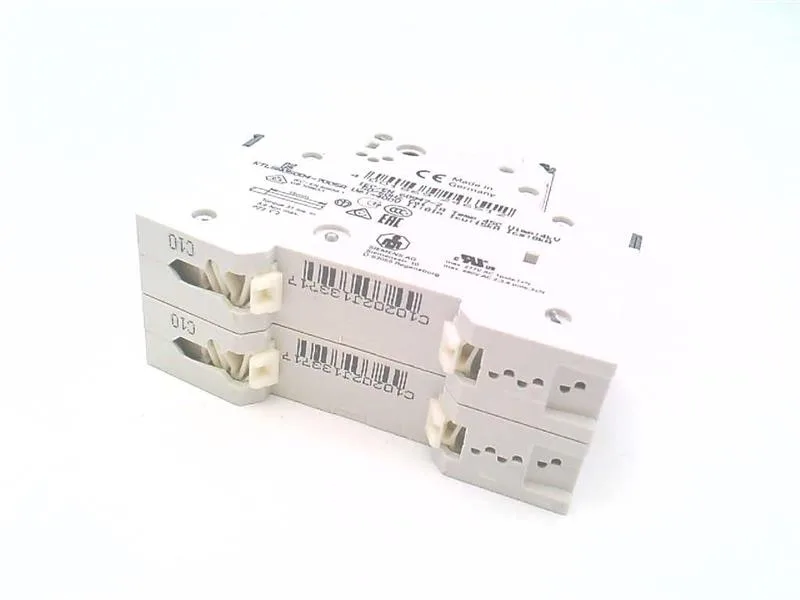

Siemens 5SY6210-7 — 2-Pole MCB (DIN Rail)

Siemens 5SY6210-7 MCB, 2-pole C-curve, 6 kA / 15 kA, 400 V A

MPN5SY6210-7

Active

Siemens SENTRON 5SY6210-7, 2-pole miniature circuit breaker, C-curve, 6 kA (EN 60898) / 15 kA (IEC 60947-2), 400 V AC, 36 mm wide, active production.

$10.67Ref. price · indicative, final on quote

Add to RFQ

Siemens 5SY6210-7 datasheet (PDF)

Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6210-7 — Identification
Parameter	Value
Product designation	Miniature circuit breaker
Brand name	SENTRON
Application environment	Mechanical engineering / industry

5SY6210-7 — Electrical
Parameter	Value
Number of poles	2

5SY6210-7 — Protection
Parameter	Value
Tripping characteristic class	C
Overvoltage category	III

5SY6210-7 — Mechanical
Parameter	Value
Modular width units	2
Width	36 mm
Height	90 mm
Depth	76 mm
Installation depth	70 mm
Mounting position	any
Min.	-40 °C
Max.	75 °C
Protection degree (IP)	IP20, with connected conductors

5SY6210-7 — Environmental
Parameter	Value
Pollution degree	3

5SY6210-7 — Specifications
Parameter	Value
At AC rated value	400 V
According to EN 60898 rated value	6 kA
With single-phase operation at AC rated value	440 V
Energy Limitation Class	3

Product details

Ratings that matter for fit

If your panel was laid out for a 5SL4363-7 (which is a 3-pole unit with similar breaking capacity), the 2-pole 5SY6210-7 won't swap in without rewiring the neutral path: this breaker does not switch the neutral conductor, so it's for line-side protection only. For a 2-pole application, though, the footprint and DIN-rail clip are identical, and the 15 kA IEC rating matches the 5SL's high-fault capability.

Mounting and environment

Mounts in any position, quick-assembly system on DIN rail. Depth is 76 mm (70 mm installation depth), width 36 mm — two modular units. IP20 with conductors connected, pollution degree 3, overvoltage category III.
