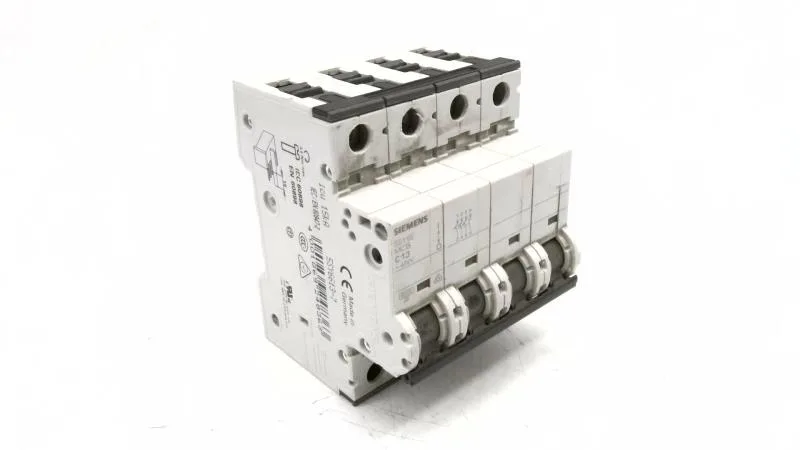

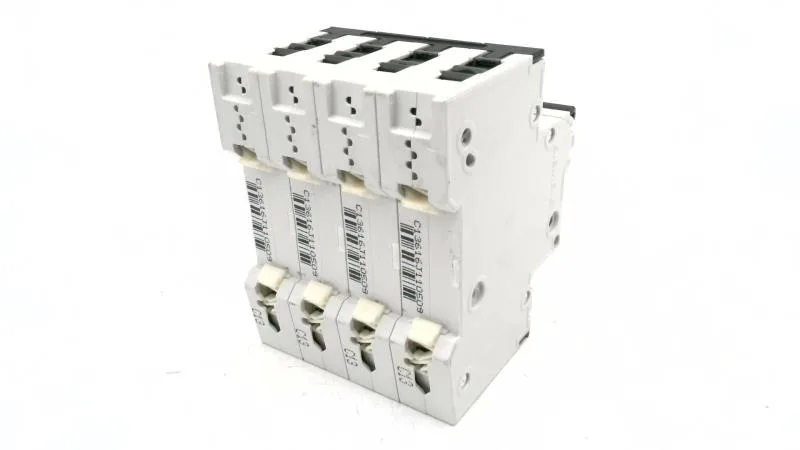

Siemens 5SY6613-7 — 4-Pole MCB (DIN Rail)

Siemens 5SY6613-7 SENTRON MCB, 4P C-13A 6kA/15kA

MPN5SY6613-7
Active

Siemens SENTRON 5SY6613-7, 4-pole miniature circuit breaker, 13 A, tripping characteristic C, breaking capacity 6 kA per EN 60898 / 15 kA per IEC 60947-2, 4 modular width units, IP20.

$27.94Ref. price · indicative, final on quote
Siemens 5SY6613-7 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026

Specifications

5SY6613-7 — Identification
ParameterValue
Brand nameSENTRON
Application suitabilityMechanical engineering / industry
5SY6613-7 — Ratings
ParameterValue
Number of poles4
Pole configuration3P+N
Rated voltage, AC (multi-phase)440 V
5SY6613-7 — Protection
ParameterValue
Tripping characteristic (trip curve)C
Energy limitation class3
Overvoltage categoryIII
Pollution degree3
Degree of protection (IP)IP20, with connected conductors
5SY6613-7 — Mechanical
ParameterValue
Width in modular units4
Width72 mm
Height90 mm
Depth76 mm
Installation depth70 mm
Fastening / mounting methodQuick assembly system
Mounting positionany
Combined terminal, topYes
Combined terminal, bottomYes
Tightening torque, max.75 °C
Tightening torque, min.-40 °C
SealableYes
5SY6613-7 — Environmental
ParameterValue
Halogen-freeYes
Silicone-freeYes
Influence of ambient temperature (derating)max. 95% to 55°C, max. 55% to 70°C, max. 35% to 75°C
5SY6613-7 — Performance
ParameterValue
Power loss per pole, AC (hot state, at In)1.4 W

Product details

The Siemens SENTRON 5SY6613-7 is a 4-pole miniature circuit breaker (3P+N) rated 13 A at AC with a C tripping characteristic — meaning it trips at 5 to 10 times rated current, the standard choice for motor and transformer inrush in industrial control panels. The 6 kA breaking capacity per EN 60898-1 covers most sub-distribution boards; the 15 kA rating per IEC 60947-2 / UL1077 applies when the breaker is used as a supplementary protector in higher-fault-capacity industrial switchgear. At 40 °C ambient the continuous rating derates to 12.38 A, and at 50 °C to 11.73 A — so if the panel runs warm, size the load accordingly. The neutral pole is not internally protected — it tracks the phase poles mechanically — so it is not a 4-pole protected breaker.

The breaker carries approvals to IEC / EN 60898-1 and IEC / EN 60947-2 / UL1077.

Frequently asked questions

Where can I buy 5SY6613-7?

It is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time.

What is the breaking capacity of 5SY6613-7?

6 kA per EN 60898-1 and 15 kA per IEC 60947-2 / UL1077. The higher figure applies when the breaker is used as a supplementary protector in industrial switchgear.

What compliance documentation does Siemens provide for 5SY6613-7?

The breaker is certified to IEC / EN 60898-1 and IEC / EN 60947-2 / UL1077. It is halogen-free and silicon-free, which supports RoHS and REACH compliance.

Will 5SY6613-7 drop into a panel specified around 5SY4140-7 without rewiring?

Both are 4-pole SENTRON MCBs with the same 4 MW footprint (72 mm width) and DIN-rail mounting. The 5SY6613-7 is a 13 A C-curve; the 5SY4140-7 is a 40 A C-curve. If the panel wiring and busbar are rated for the higher current, the 5SY6613-7 will physically fit, but the load must be within its 13 A rating.
