What it is and where it sits

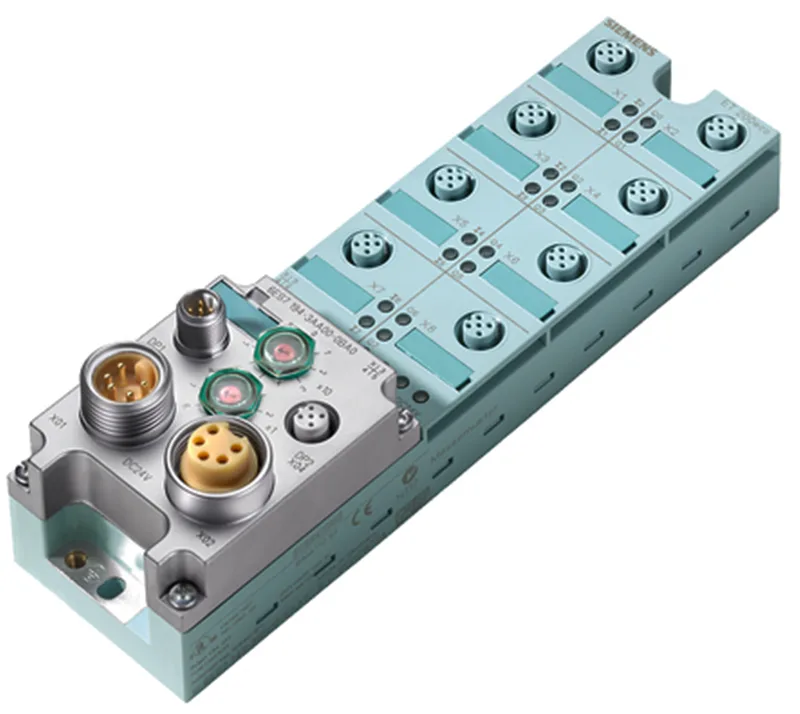

The Siemens 6ES7141-3BH00-0XA0 is a SIMATIC DP ET 200ECO Basic module, type BM 141, carrying 16 digital inputs at 24 V DC and 8 outputs on 8× M12 ports with duplicate assignment, sealed to IP65/67 so it mounts directly in the field rather than inside a cabinet. It talks PROFIBUS DP on the back end with a maximum transmission rate of 12 Mbit/s, so it drops into any DP master segment without a separate gateway.
Wiring practice — inputs, sensors, thresholds
Two-wire sensors are supported directly; permissible quiescent current is up to 1.5 mA, so mechanical switches and standard NAMUR-style two-wire proximity devices wire in without extra resistor networks. Typical input filter is 3 ms on both edges, which is the figure to plan debounce and high-speed counting around — it's generous for limit switches and standard prox, but it will swallow fast pulses from light curtains or encoders. The output stage is 24 V DC with electronic short-circuit protection and reverse polarity protection on the supply, so a miswired field cable won't take the block out. Up to 16 outputs may be loaded simultaneously to 55 °C, and aggregate output current is rated 1 A at 55 °C — that is the budget to spread across the 8 output channels, not a per-channel figure.
Field-side mounting and protection
Connection is via 4/5-pin M12 circular connectors on the block itself, with no separate terminal panel required — the block becomes the field I/O, not a remote tail to a cabinet. Degree of protection is IP65/67, which covers hose-down and intermittent immersion environments typical of food-and-beverage, washdown cells, and outdoor machinery skids. Isolation is tested at 500 V DC and rated 75 V DC / 60 V AC between different circuits, with a galvanic barrier between PROFIBUS DP and everything else — the DP port stays clean even when field wiring faults the I/O side.
Diagnostics and the channel-level view
Each input has a green status LED, and there is a group-error SF LED for module-level faults; diagnostic information is readable by the host, so the field tech gets the fault from the HMI before opening the cabinet door. There is no per-channel fault LED (the F indicator is absent), so channel-level shorts report back through the group error and the diagnostic buffer rather than a localized blink. There is no electrical isolation between channels inside a group — keep that in mind for mixed-voltage sourcing on adjacent inputs.
Power, dissipation, and layout
The block draws a typical 70 mA from the 1L+ supply and dissipates a typical 3.6 W, so a standard 24 V DP segment power budget covers it without a separate feed. Unshielded PROFIBUS cable is rated to 30 m maximum; beyond that, switch to the standard PROFIBUS cable spec the network is wired to. Block format is 210 mm high × 60 mm wide × 28 mm deep at approximately 210 g — slim enough to fit between machine frame rails where a conventional I/O slice would not.
Sourcing posture

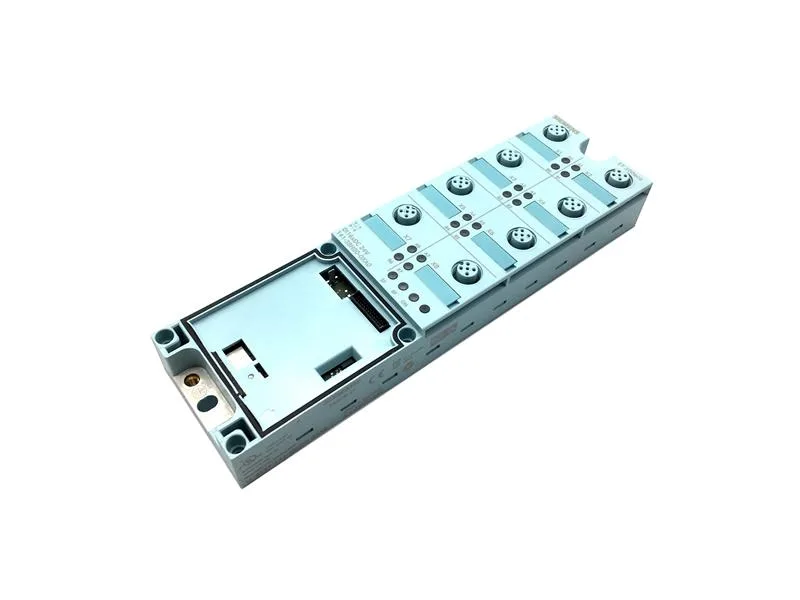

The connection block required to land the field wiring is order code 6ES7194-3AA00-0.A0 and is purchased separately, so the BOM line item is the BM 141 plus that connection block, not the BM 141 alone.
