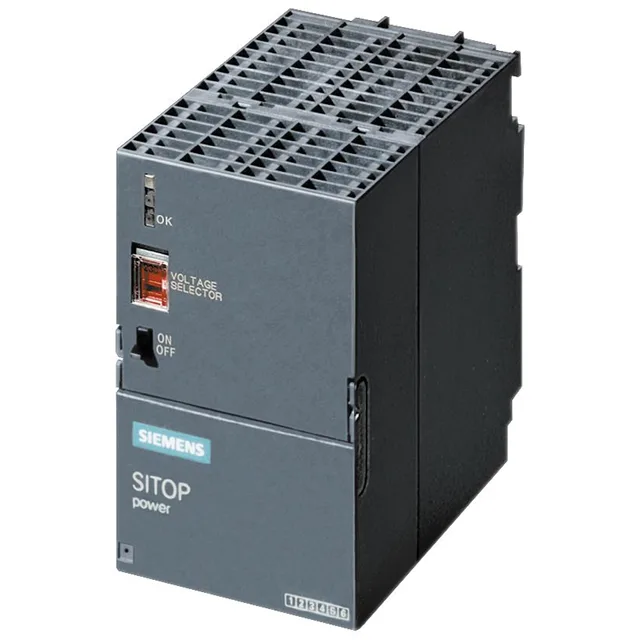

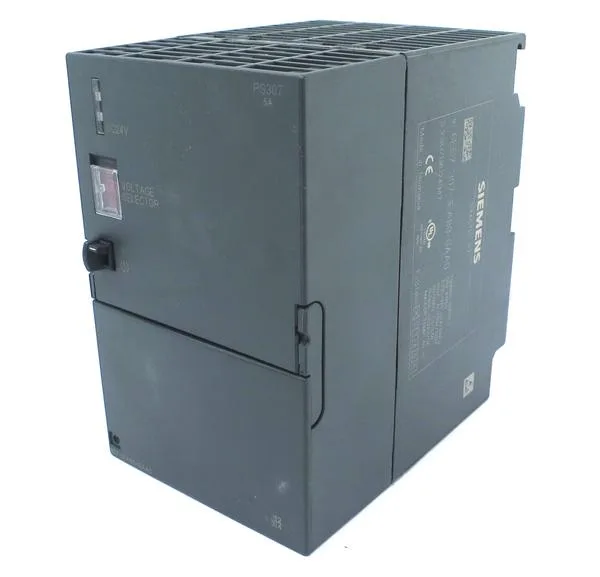

Siemens 6ES7307-1EA80-0AA0

MPN6ES7307-1EA80-0AA0

NRND

SIMATIC S7-300 Outdoor Regulated power supply PS307 input: 120/230 V AC, output: 24 V/5 A DC

$185.42 – $484.50Ref. price · indicative, final on quote

Find equivalent or request quote

Siemens 6ES7307-1EA80-0AA0 datasheet (PDF)

StockContact for availability

MOQ1 pcs

Sourced new & surplus through independent channelsListing updated Jun 2026

Specifications

6ES7307-1EA80-0AA0 key specifications
Parameter	Value
Fuse protection type	T 3,15 A/250 V (not accessible)
Type of electrical connection	screw-type terminals
Type of the power supply network	1-phase AC
Voltage curve at output	Controlled, isolated DC voltage
At rated input voltage 120	2.1 A
At rated input voltage 230	1.2 A
Output voltage at DC rated value	24 V
On slow fluctuation of input voltage	0.2 %
Relative overall tolerance of the voltage	3 %
Product function output voltage adjustable	No
Behavior of the output voltage when switching on	No overshoot of Vout (soft start)
At rated output voltage for rated value of the output current typical	23 W

All specifications+75 ▾

6ES7307-1EA80-0AA0 additional specifications
Parameter	Value
Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	0.3 %
At Short-Circuit during operation	80 ms
Response value current limitation	5.5 ... 6.5 A
Design of Short-Circuit protection	Electronic shutdown, automatic restart
On Short-Circuiting during the Start-Up	180 ms
At Short-Circuit during operation typical	20 A
Property of the output Short-Circuit proof	Yes
On Short-Circuiting during the Start-Up typical	20 A
Current limitation of inrush current at 25 °C maximum	45 A
Buffering time for rated value of the output current in the event of power failure minimum	20 ms
Supplied active power typical	120 W
Line frequency	47 ... 63 Hz
Depth of the enclosure	120 mm
Width of the enclosure	80 mm
Height of the enclosure	125 mm
Product feature of the enclosure housing can be lined up	Yes
MTBF at 40 °C	2 231 610 h
CE marking	Yes
UL approval	Yes; UL-Listed (UL 508), File E143289; CSA (CSA C22.2 No. 142)
CSA approval	Yes; UL-Listed (UL 508), File E143289, CSA (CSA C22.2 No. 142)
EAC approval	Yes
ULhazloc approval	No
Environmental category according to IEC 60721	Climate class 3K5, transient condensation permitted
Top	50 mm
ATEX	No
Left	0 mm
IECEx	No
Right	0 mm
Bottom	50 mm
DNV GL	No
1 at AC	93 ... 132 V
2 at AC	187 ... 264 V
Typical	0.3 mA
At input	L, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
At output	L+, M: 3 screw terminals each for 0.5 ... 2.5 mm²
NEC class 2	No
Rated range	0 ... 5 A
Rated value	5 A
1 rated value	50 Hz
2 rated value	60 Hz
In the feeder	Recommended miniature circuit breaker: from 10 A characteristic C or from 6 A characteristic D
Initial value	Set by means of selector switch on the device
During storage	-40 ... +85 °C
FM registration	No
During operation	-25 ... +70 °C; with natural convection
During transport	-40 ... +85 °C
Mounting	Can be mounted onto S7 rail
I2t value maximum	1.8 A²·s
Other information	Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Galvanic isolation	Safety extra low output voltage Vout according to EN 60950-1 and EN 50178, creepage distances and clearances > 5 mm
1 at AC rated value	120 V
2 at AC rated value	230 V
Protection class IP	IP20
Bridging of equipment	No
Efficiency in percent	84 %
Mechanical accessories	Mounting adapter for standard mounting rail (6ES7390-6BA00-0AA0)
Response delay maximum	3 s
For emitted interference	EN 55011 Class A
Nippon kaiji kyokai	No
For interference immunity	EN 61000-6-2
cCSAus, class 1, division 2	No
Load step 100 to 50% typical	0.2 ms
Load step 50 to 100% typical	0.2 ms
At output 1 at DC rated value	24 V
Overvoltage overload capability	2.3 × Vin rated, 1.3 ms
Design of input wide range input	No
Lloyds register of shipping	No
On slow fluctuation of ohm loading	0.4 %
Operating resource protection class	Class I
Design of the overvoltage protection	Additional control loop, shutdown at approx. 30 V, automatic restart
Display version for normal operation	Green LED for 24 V OK
French marine classification society	No
Operating condition of the mains buffering	at Vin = 93/187 V
Galvanic isolation between input and output	Yes
American bureau of shipping europe ltd.	No
