Siemens 6ES7307-1BA01-0AA0 — Power Supplies

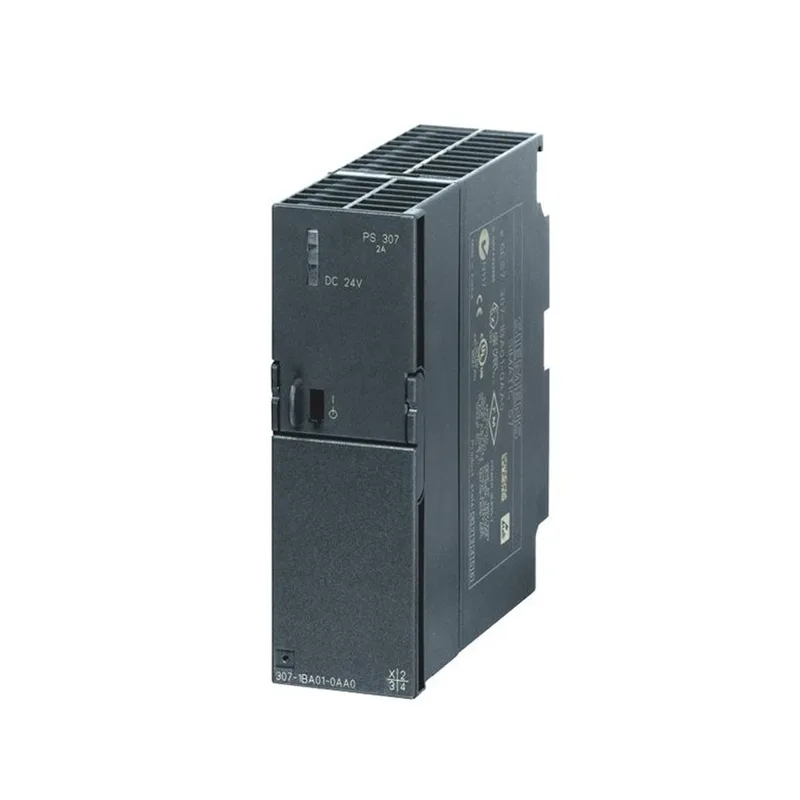

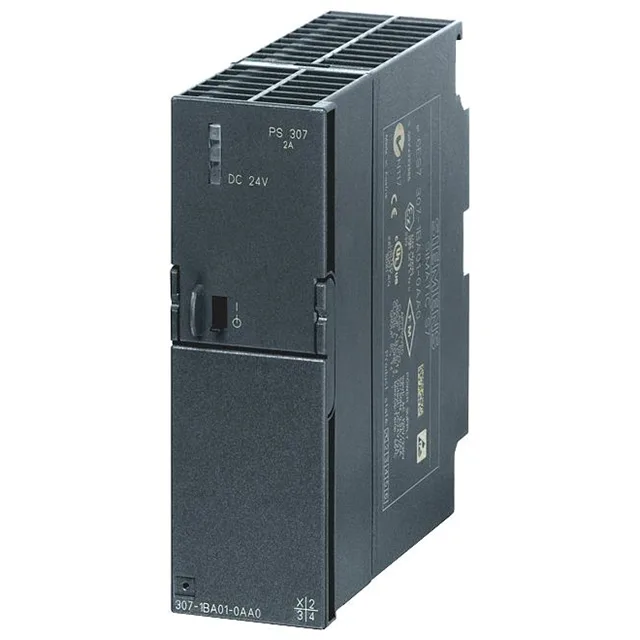

Siemens 6ES7307-1BA01-0AA0 SITOP Power Supply, 2 A, ATEX, UL

MPN6ES7307-1BA01-0AA0
NRND

Siemens SITOP power supply, 6ES7307-1BA01-0AA0, 2 A rated output, 120/230 VAC input, ATEX II 3G, IECEx, cULus listed, IP20.

$210.00 – $324.97Ref. price · indicative, final on quote
Siemens 6ES7307-1BA01-0AA0 datasheet (PDF)
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7307-1BA01-0AA0 key specifications
ParameterValue
Fuse protection typeT 1.6 A/250 V (not accessible)
Type of electrical connectionscrew-type terminals
Type of the power supply network1-phase AC
Voltage curve at outputControlled, isolated DC voltage
At rated input voltage 1200.9 A
At rated input voltage 2300.5 A
Output voltage at DC rated value24 V
On slow fluctuation of input voltage0.1 %
Relative overall tolerance of the voltage3 %
Product function output voltage adjustableNo
Behavior of the output voltage when switching onNo overshoot of Vout (soft start)
At rated output voltage for rated value of the output current typical9 W

All specifications

6ES7307-1BA01-0AA0 additional specifications
ParameterValue
Relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.1 %
At Short-Circuit during operation90 ms
Response value current limitation2.2 ... 2.6 A
Design of Short-Circuit protectionElectronic shutdown, automatic restart
On Short-Circuiting during the Start-Up90 ms
At Short-Circuit during operation typical9 A
Property of the output Short-Circuit proofYes
On Short-Circuiting during the Start-Up typical9 A
Current limitation of inrush current at 25 °C maximum22 A
Buffering time for rated value of the output current in the event of power failure minimum20 ms
Supplied active power typical48 W
Number of Parallel-Switched equipment resources for increasing the power2
Line frequency47 ... 63 Hz
Depth of the enclosure120 mm
Width of the enclosure40 mm
Height of the enclosure125 mm
Product feature of the enclosure housing can be lined upYes
MTBF at 40 °C2 320 078 h
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
CSA approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 142), File E143289
EAC approvalYes
ULhazloc approvalYes
Shipbuilding approvalIn S7-300 system
Environmental category according to IEC 60721Climate class 3K3, 5 … 95% no condensation
Top40 mm
ATEXYes; ATEX (EX) II 3G Ex nA nC IIC T4 Gc
Left0 mm
IECExYes; IECEx Ex nA nC IIC T4 Gc
Right0 mm
Bottom40 mm
DNV GLNo
1 at AC85 ... 132 V
2 at AC170 ... 264 V
Typical0.5 mA
At inputL, N, PE: 1 screw terminal each for 0.5 ... 2.5 mm² single-core/finely stranded
At outputL+, M: 2 screw terminals each for 0.5 ... 2.5 mm²
NEC class 2No
Rated range0 ... 2 A
Rated value2 A
1 rated value50 Hz
2 rated value60 Hz
In the feederRecommended miniature circuit breaker: 3 A characteristic C
Initial valueAutomatic range selection
During storage-40 ... +85 °C
FM registrationYes; Class I, Div. 2, Group ABCD, T4
During operation0 ... 60 °C; with natural convection
During transport-40 ... +85 °C
MountingCan be mounted onto S7 rail
Relating to ATEXIECEx Ex nA nC IIC T4 Gc; ATEX (EX) II 3G Ex nA nC IIC T4 Gc; cULus (ANSI/ISA 12.12.01, CSA C22.2 No.213) Class I, Div. 2, Group ABCD, T4, File E330455
I2t value maximum1 A²·s
Other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Galvanic isolationSafety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
1 at AC rated value120 V
2 at AC rated value230 V
Protection class IPIP20
Bridging of equipmentYes
Efficiency in percent84 %
Mechanical accessoriesMounting adapter for standard mounting rail (6EP1971-1BA00)
Response delay maximum2 s
For emitted interferenceEN 55022 Class B
Nippon kaiji kyokaiNo
For interference immunityEN 61000-6-2
cCSAus, class 1, division 2No
Load step 100 to 50% typical0.5 ms
Load step 50 to 100% typical0.5 ms
At output 1 at DC rated value24 V
Overvoltage overload capability2.3 × Vin rated, 1.3 ms
Design of input wide range inputNo
Lloyds register of shippingNo
On slow fluctuation of ohm loading0.2 %
Operating resource protection classClass I
Design of the overvoltage protectionAdditional control loop, shutdown at < 28.8 V, automatic restart
Display version for normal operationGreen LED for 24 V OK
French marine classification societyNo
Operating condition of the mains bufferingat Vin = 93/187 V
Galvanic isolation between input and outputYes
American bureau of shipping europe ltd.No

Product details

The 6ES7307-1BA01-0AA0: This SITOP power supply delivers a rated output of 2 A (0 to 2 A range) at SELV levels per EN 60950-1 and EN 50178, making it suitable for powering 24 VDC control loads in a Siemens S7-300 rack or similar automation island. Input accepts 120 VAC (85 to 132 V) or 230 VAC (170 to 264 V) at 47 to 63 Hz — covers global line voltages without a tap change. The ATEX II 3G Ex nA nC IIC T4 Gc and IECEx Ex nA nC IIC T4 Gc ratings mean it is certified for use in Zone 2 gas hazardous areas (non-sparking, non-incendive) with T4 temperature class (≤135 °C surface). The cULus Class I, Div. 2 approval (File E330455) extends that to North American Division 2 locations. Galvanic isolation with safety extra-low output voltage ensures the 24 VDC side is touch-safe and isolated from the mains — critical for protecting downstream PLC I/O and field sensors.

Mounting and wiring checklist

Fastens onto the S7-300 DIN rail (standard 35 mm profile). Clearance: 40 mm top and bottom, 0 mm left and right — no side gap needed, but plan for airflow above and below. Output terminals: L+, M — two screw terminals each for the same wire range. Strip length and torque per standard practice. Recommended upstream protection: a 3 A characteristic C miniature circuit breaker in the feeder. Operating temperature range 0 to 60 °C with natural convection — no forced cooling required within that range. Storage and transport range -40 to +85 °C.

CE marked. cULus-Listed to UL 508 and CSA C22.2 No. 142 (File E143289). EAC approved. FM registered for Class I, Div. 2, Groups A, B, C, D, T4. MTBF at 40 °C: 2,320,078 hours — reflects a robust design for continuous industrial operation. Maximum I²t value: 1 A²·s — relevant for fuse coordination and inrush current assessment.

Frequently asked questions

Where can I buy 6ES7307-1BA01-0AA0 and get a price?

This part is sourced to order against an RFQ. Submit a request for quote (RFQ) through this listing; availability and current pricing are confirmed at quote time.

What is the ATEX rating on 6ES7307-1BA01-0AA0?

ATEX II 3G Ex nA nC IIC T4 Gc — certified for Zone 2 gas hazardous areas with non-sparking/non-incendive construction and T4 temperature class. Also carries IECEx Ex nA nC IIC T4 Gc and cULus Class I, Div. 2 approvals.

What clearance is needed around this power supply?

40 mm clearance required above and below the unit for convection cooling. Zero clearance needed on left and right sides — side-by-side mounting on the DIN rail is acceptable.

What compliance documentation is available for 6ES7307-1BA01-0AA0?

CE marking, cULus listing (UL 508, CSA C22.2 No. 142, File E143289), EAC approval, FM registration (Class I, Div. 2), ATEX and IECEx certificates. The unit provides SELV output per EN 60950-1 and EN 50178.
