Siemens 6ES7321-7BH00-0AB0

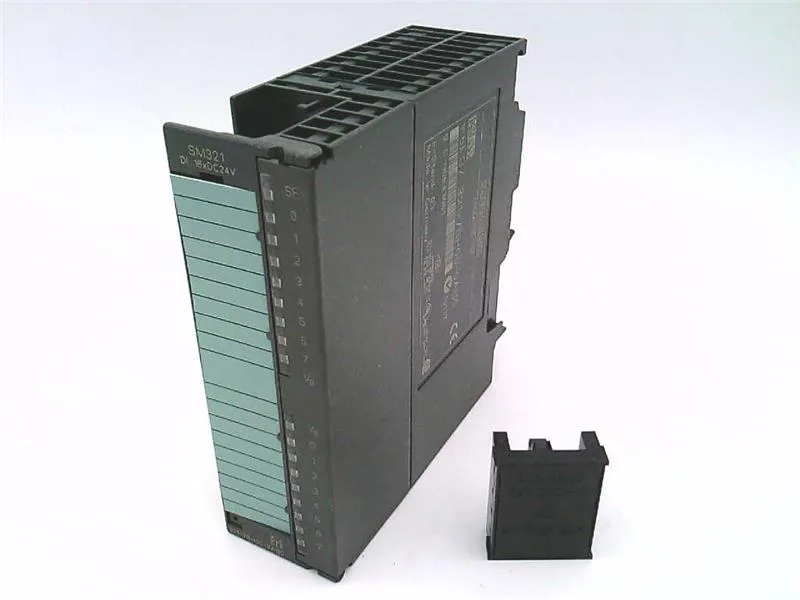

Siemens 6ES7321-7BH00-0AB0 SM 321 Digital Input Module

MPN 6ES7321-7BH00-0AB0
End of Life

Siemens SIMATIC S7-300 SM 321 digital input module, 6ES7321-7BH00-0AB0, 16 optically isolated inputs, 24 VDC, 20-pin front connector, with diagnostic alarm and hardware interrupt.

$188.66 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

6ES7321-7BH00-0AB0 specifications
ParameterValue
Depth120 mm
Width40 mm
Height125 mm

Product details

What this module does in an S7-300 rack

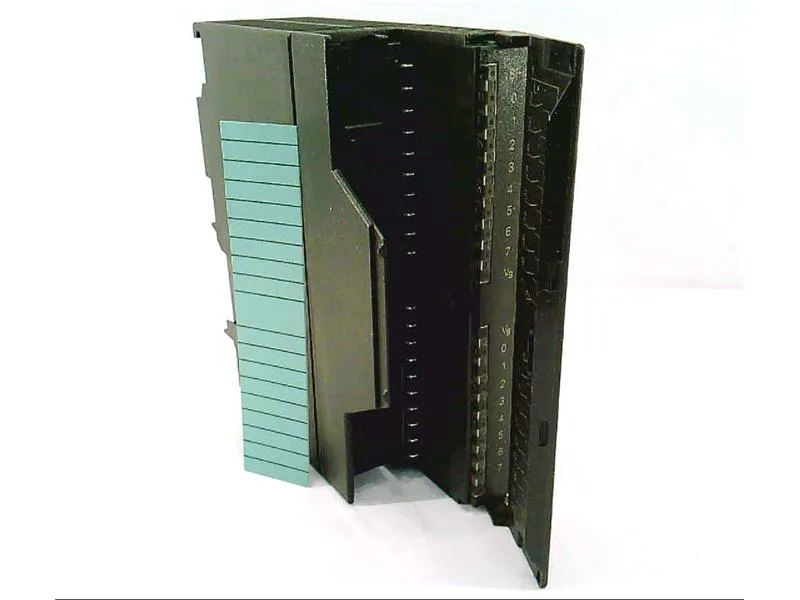

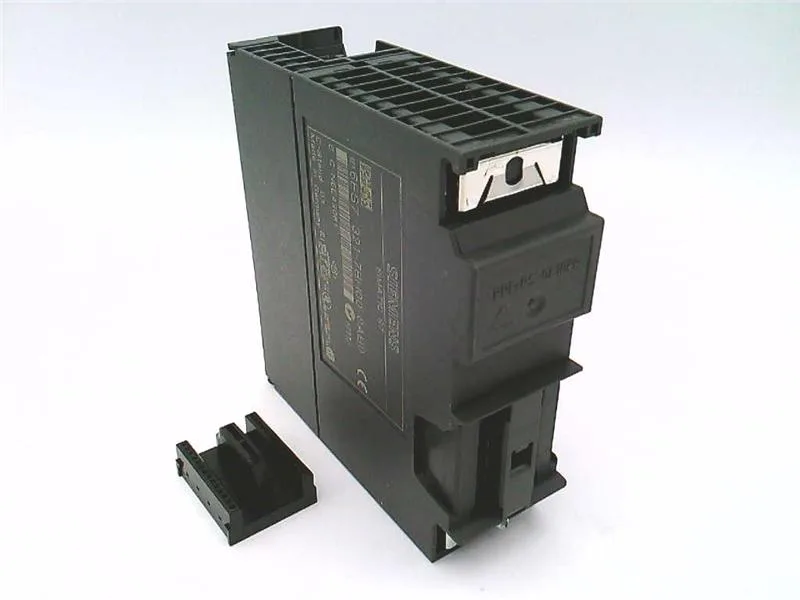

The Siemens 6ES7321-7BH00-0AB0 is a SIMATIC S7-300 SM 321 digital input module that provides 16 optically isolated inputs at 24 VDC, with a 20-pin front connector for field wiring. It supports both diagnostic alarms and hardware interrupts, so the CPU can immediately flag an external fault or a change-of-state on any input without polling the module.

Input characteristics and wiring

The module accepts 2-wire proximity sensors with a permissible quiescent current up to 1.5 mA, and the input filter is parameterizable to 0.1 / 0.5 / 3 / 15 / 20 ms — choose the slower setting to debounce mechanical contacts or the faster one for high-speed sensor edges. Signal "1" is detected from 13 to 30 V (typical current draw 7 mA), while signal "0" is -30 to +5 V, giving a clean threshold at 24 VDC nominal with a permissible range of 20.4 to 28.8 V DC. All 16 inputs share a common group isolated from the backplane bus via optocouplers, tested at 500 V DC — no channel-to-channel isolation, so the field supply must be common across all inputs.

The module snaps onto a DIN rail in the S7-300 rack, occupying one slot with a width of 40 mm, depth of 120 mm, and height of 125 mm. Power draw from the backplane bus is 55 mA at 5 V DC, plus up to 40 mA from the load voltage L+ (unloaded), with a typical power loss of 4 W.

MPN
6ES7321-7BH00-0AB0
