Siemens 6ES7953-8LG30-0AA0 — PLC Accessories

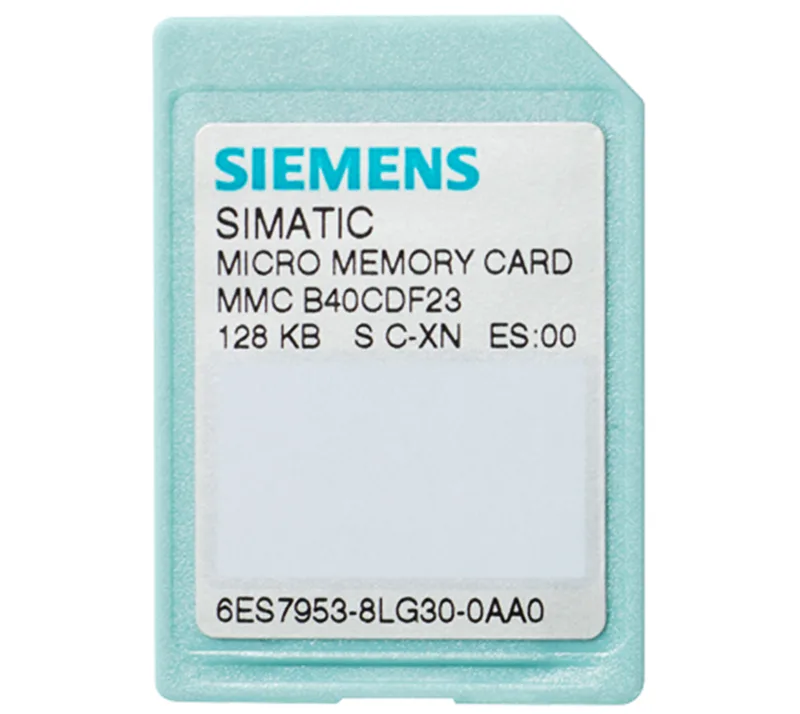

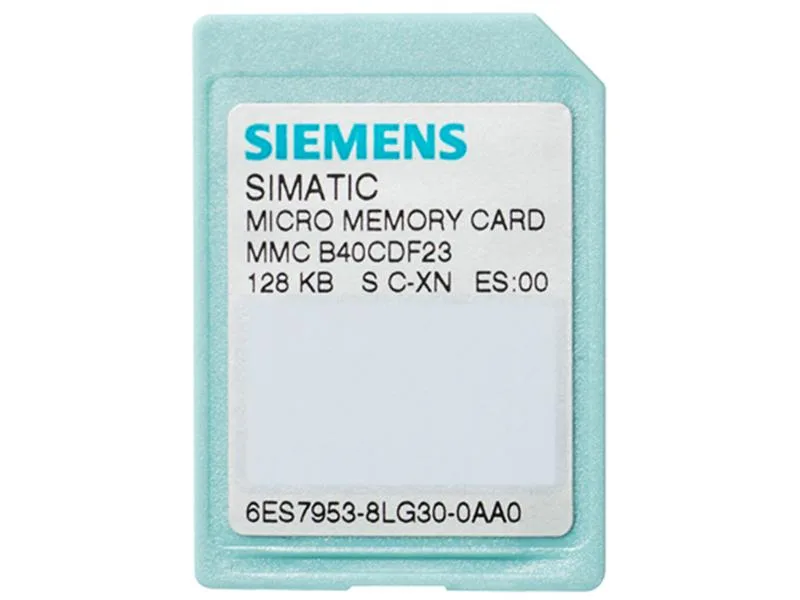

Siemens 6ES7953-8LG30-0AA0 S7-300 Micro Memory Card, 128 KB

MPN6ES7953-8LG30-0AA0

Siemens SIMATIC S7-300 / ET 200, Micro Memory Card, 128 kbyte Flash-EPROM, 24 × 32 × 1.4 mm, 2 g, order code 6ES7953-8LG30-0AA0.

$58.29 – $170.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7953-8LG30-0AA0 — Specifications
ParameterValue
Depth1.4 mm
Width24 mm
Height32 mm
Memory size128 kbyte
Type of memoryFlash-EPROM
Weight, approx.2 g
Belongs to productS7-300 / ET 200
Number of write (delete operations, min.)100 000
Data retention (after final programming action), min.10 a

Product details

The Siemens 6ES7953-8LG30-0AA0 is a Micro Memory Card (MMC) for the S7-300, C7, and ET 200 families, carrying 128 kbyte of Flash-EPROM storage. It's the program and parameter memory for the CPU — without it, the controller has no application to run. The card writes program blocks and retains data for a minimum of 10 years after final programming, with a rated endurance of at least 100,000 write/delete cycles.

The 128 kbyte capacity suits small-to-medium S7-300 applications — think a few dozen FCs and DBs for a conveyor section or a pump skid. If your project exceeds that, you'd step up to the 512 KB or 2 MB cards in the same form factor. The Flash-EPROM technology means the program survives a power loss without a backup battery, which simplifies commissioning and spares management.

Frequently asked questions

Where can I buy the 6ES7953-8LG30-0AA0 and get a price?

This part is sourced and quoted to order through independent distribution. Submit an RFQ for current availability and pricing — confirmed at quote time. No stock figures or prices are published here.

What are the key specifications of the 6ES7953-8LG30-0AA0?

It's a 128 kbyte Flash-EPROM Micro Memory Card for S7-300/C7/ET 200 systems. Dimensions are 24 mm wide, 32 mm tall, 1.4 mm deep, weighing 2 g. Minimum write/delete endurance is 100,000 cycles, and data retention after final programming is at least 10 years.

Will the 6ES7953-8LG30-0AA0 work in an ET 200 station?

Yes, it belongs to the S7-300 / ET 200 product family and fits the MMC slot on ET 200 interface modules such as the IM 151 and IM 153.
