Siemens 6ES7953-8LF00-0AA0 — PLC Accessories

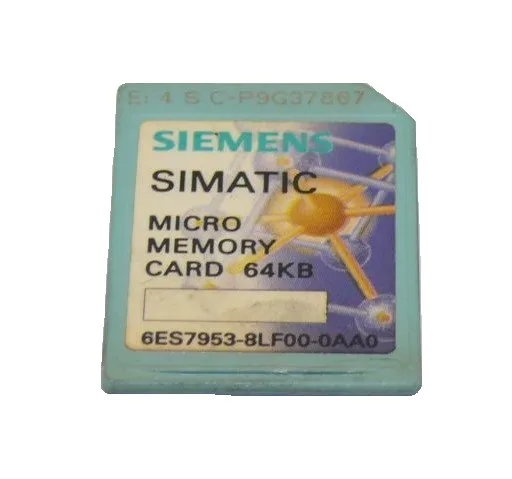

Siemens 6ES7953-8LF00-0AA0 SIMATIC S7 Micro Memory Card, 64

MPN6ES7953-8LF00-0AA0

Siemens SIMATIC S7 Micro Memory Card, 6ES7953-8LF00-0AA0, 64 kbyte Flash-EPROM, 3.3 V NFLASH, for S7-300/C7/ET 200S IM151 CPUs.

$33.15Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7953-8LF00-0AA0 — Specifications
ParameterValue
Memory size64 kbyte
Type of memoryFlash-EPROM
Weight, approx.50 g
Belongs to productS7-300/C7/ET 200S IM151 CPU

Product details

The Siemens 6ES7953-8LF00-0AA0 is a Micro Memory Card for the S7-300, C7, and ET 200S IM151 CPU families. It stores the program and configuration data for the CPU, using a 64 kbyte Flash-EPROM that retains the data without a backup battery.

64 kbyte is the available user memory for logic blocks, data blocks, and system configuration. For a typical small-to-medium S7-300 application — say, a conveyor line with a few dozen I/O points and basic interlocks — this is enough. If your project uses extensive function blocks, recipe data, or a large HMI tag database, you will hit the ceiling. The Flash-EPROM type means the card is electrically erased and reprogrammed in-circuit; no UV eraser needed, and no battery to maintain the program during a power loss.

Frequently asked questions

What is the memory size and type?

64 kbyte of Flash-EPROM memory. This is the user memory for the program and data on S7-300, C7, and ET 200S IM151 CPUs.

Will this card work in an ET 200S IM151 CPU?

Yes, the card is specified for the ET 200S IM151 CPU family, as well as S7-300 and C7 CPUs.

MPN
6ES7953-8LF00-0AA0
