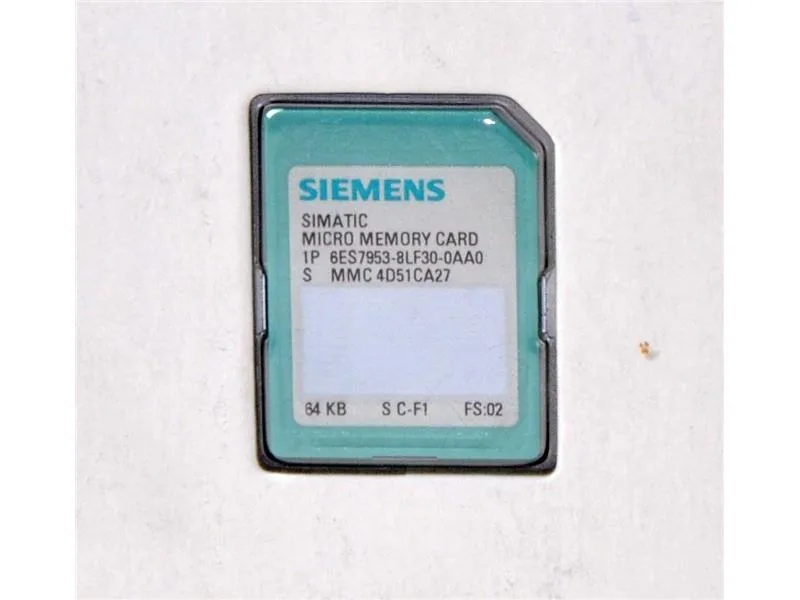

Siemens 6ES7953-8LF30-0AA0 — PLC Accessories

Siemens 6ES7953-8LF30-0AA0 Micro Memory Card, 64 KB, S7-300

MPN6ES7953-8LF30-0AA0

Siemens SIMATIC S7, Micro Memory Card for S7-300/C7/ET 200, 3.3V Nflash, 64 KB, Flash-EPROM memory, 1.4 mm depth, 24 mm width, 32 mm height, approx. 2 g weight.

$36.83 – $89.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026

Specifications

6ES7953-8LF30-0AA0 — Specifications
ParameterValue
Depth1.4 mm
Width24 mm
Height32 mm
Memory size64 kbyte
Type of memoryFlash-EPROM
Weight, approx.2 g
Belongs to productS7-300 / ET 200
Number of write (delete operations, min.)100 000
Data retention (after final programming action), min.10 a

Product details

The Siemens 6ES7953-8LF30-0AA0 is a 64 kbyte Flash-EPROM Micro Memory Card for the S7-300, C7, and ET 200 families. It's designated as a spare part, meaning it's intended for replacement in existing installations rather than new designs. The card provides 100,000 minimum write/delete cycles and retains data for at least 10 years after final programming.

Memory type is Flash-EPROM, so it retains the program without battery backup. The 64 kbyte capacity suits smaller S7-300 applications — think machine control logic for a single station or a compact conveyor section. For larger programs, Siemens offers higher-capacity cards in the same form factor.

Frequently asked questions

How do I get current pricing and availability for 6ES7953-8LF30-0AA0?

Submit an RFQ through this listing. Pricing and availability are confirmed at quote time through independent distribution channels.

What is the memory size and type of 6ES7953-8LF30-0AA0?

It has 64 kbyte of Flash-EPROM memory, with a minimum of 100,000 write/delete cycles and at least 10 years of data retention after final programming.

What are the physical dimensions of 6ES7953-8LF30-0AA0?

Depth is 1.4 mm, width is 24 mm, height is 32 mm, and it weighs approximately 2 g.

Will 6ES7953-8LF30-0AA0 work in an S7-300 system?

Yes, it belongs to the S7-300 / ET 200 product family and is designed for use with S7-300 CPUs, C7 compact units, and ET 200 distributed I/O interface modules.

MPN
6ES7953-8LF30-0AA0
