Interface & Installation

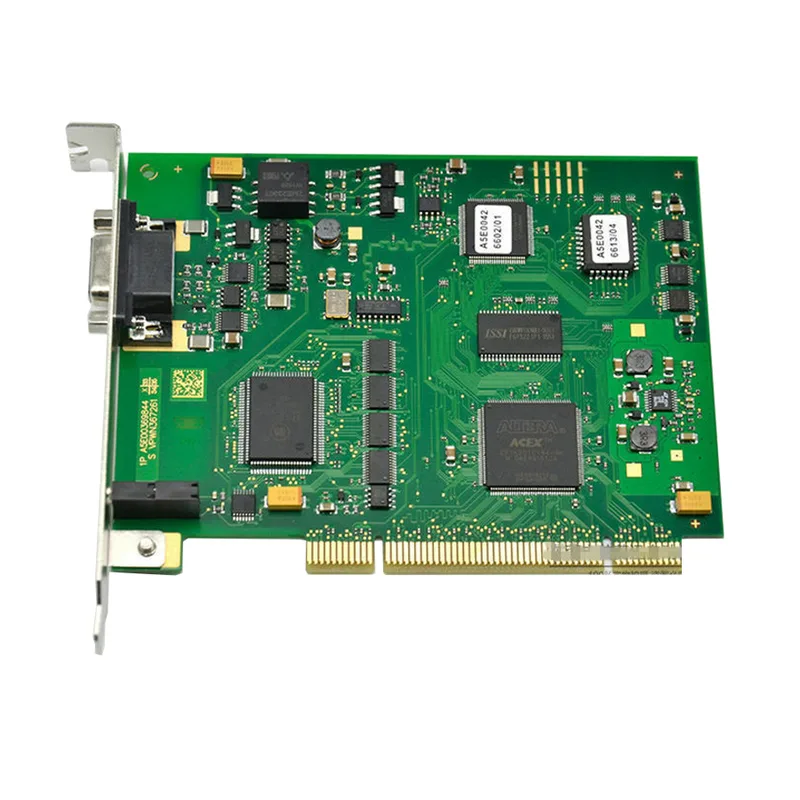

The 6GK1561-1AA01: PCI bus draws 0.5 A at 5 V DC. The 9-pin Sub-D (RS-485) is the PROFIBUS interface. Software required: SOFTNET-PB for S7 communication, DP master, or DP slave function — included in the delivery of the software product. If you're chasing noise on a PROFIBUS segment, check the shield connection at the Sub-D first. Dimensions: 18 mm wide, 102 mm height, 130 mm depth. IP00, so it goes inside a clean, ventilated enclosure. Operating temperature 5…55 °C, storage -20…+60 °C. CE, C-Tick, and UL/CSA 60950-1. Industrial EMC per EN 61000-6-2/6-3.
