6GK1562-1AA00 - Siemens
MPN6GK1562-1AA00

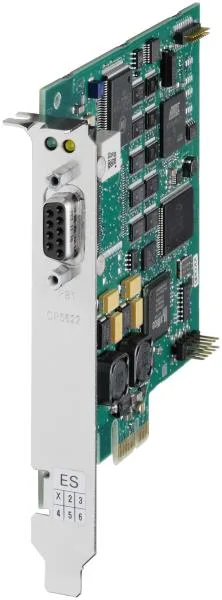

********** spare part ********* communications processor CP 5621 PCI Express X1 card (32-bit); for connection of a PG or PC with PCI express bus to PROFIBUS or MPI currently only 32-bit support with SIMATIC NET V8.2 software! only for old applications, from Windows XP is 6GK1562-2AA00 recommended see http:/support. automation.siemens. com/WW/view/en/84138725.
$323.22Ref. price · indicative, final on quote
StockContact for availability
Lead timeCall for availability wk
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Environmental
| Parameter | Value |
|---|---|
| Ingress protection (IP) rating | IP00 |
| Operating temperature range | 5 ... 55 °C |
| Storage temperature range | -20 ... +60 °C |
| Transport temperature range | -20 ... +60 °C |
Mechanical
| Parameter | Value |
|---|---|
| Height | 111 mm |
| Width | 18 mm |
| Depth | 129 mm |
Approvals
| Parameter | Value |
|---|---|
| Safety approval (CSA / UL) | CAN/CSA C22.2 & UL 60950-1, UL 508 |
| CE marking | Yes |
| EMC immunity standards | EN 61000-6-1, EN 61000-6-2 |
| EMC emissions standards | EN 61000-6-3, EN 61000-6-4 |
| C-Tick (RCM, Australia/NZ) | Yes |
| EMC standards (general) | 2004/108/EC |
MPN
6GK1562-1AA00
