6GT2801-2BA10 - Siemens
MPN6GT2801-2BA10
Active

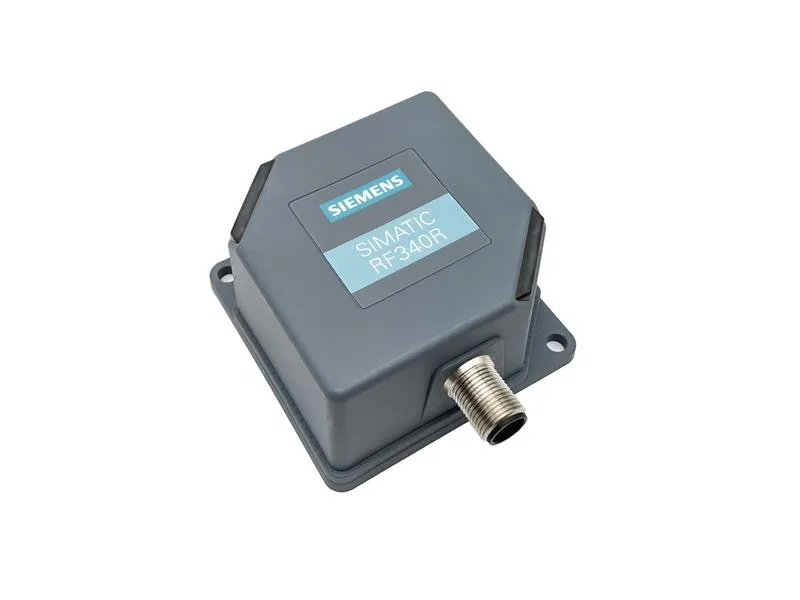

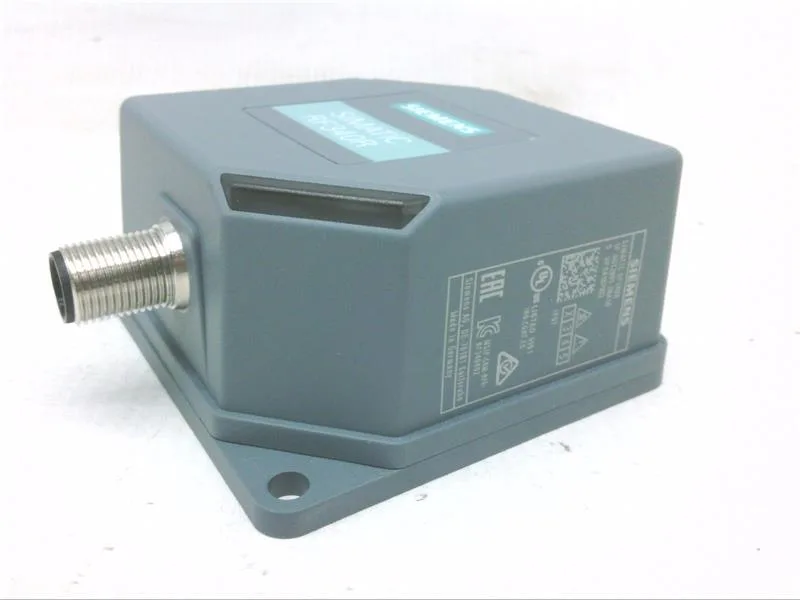

SIMATIC RF300; Reader RF340R (GEN2); RS422 interface (3964R); IP67, -25 to +70 °C, 75x 75x 41 mm with integrated antenna.
$387.35 – $1,055.73Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
RF / Air interface
| Parameter | Value |
|---|---|
| Operating frequency (rated) | 13.56 MHz |
| Supported RF protocols | RF300 specific, ISO 15693, ISO 18000-3, ISO 14443 |
| Compatible transponders / systems | RF300, ISO 15693 and MOBY E transponder, for connecting to communication modules |
| Read/write range, max. | 140 mm; Range is dependent on transponder type: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| Air-interface data rate, max. | 106 kbit/s |
| Multitag capable | No |
Performance
| Parameter | Value |
|---|---|
| Read time per byte (typ.) | 0.13 ms |
| Write time per byte (typ.) | 0.13 ms |
| MTBF | 260 a |
Communication / Electrical
| Parameter | Value |
|---|---|
| Communication interfaces | RS422 |
| Electrical connector type | M12, 8-pin |
| Voltage range (DC) | 20.4 ... 28.8 V |
| Rated value (DC) | 24 V |
| Current at 24 V (typ.) | 0.06 A |
| Status indicators (LEDs) | 5-color LED |
Mechanical
| Parameter | Value |
|---|---|
| Mounting / fastening method | 2 x M5 screws |
| Width | 75 mm |
| Height | 41 mm |
| Depth | 75 mm |
| Material | PA 12 |
| Color | Ti gray |
Environmental
| Parameter | Value |
|---|---|
| Degree of protection (IP) | IP67 |
| Operating temperature range | -25 ... +70 °C |
| Storage temperature range | -40 ... +85 °C |
| Transport temperature range | -40 ... +85 °C |
| Shock acceleration | 500 m/s² |
| Vibration acceleration | 200 m/s² |
| Shock resistance standard | EN 60721-3-7 Class 7 M2 |
Approvals
| Parameter | Value |
|---|---|
| IECEx certified | No |
MPN
6GT2801-2BA10
