7MF0340-1DM01-5AF2-Z A01+E01+H01
Lead time on requestGet quote
Siemens — Differential Pressure Transmitters
Siemens Differential Pressure Transmitters — 23 part numbers with specifications and datasheets. Filter by key specs and request a quote on AO Ctrl.
- Product No.
- 7MF0300-1JD01-5BF2-Z C11+E20+Y01+Y16 · 7MF0300-1JD01-5BF2-Z C11+E20+Y01+Y16+Y21 · 7MF0300-1JD02-5BF2-Z A03+E20+Y01+Y16+Y21 · 7MF0300-1JD02-5BF2-Z E20+Y01+Y16+Y21
- Weight
- 4Kg · 1,800 Kg · 4.000 Kg · 0.82 kgs
- Part #

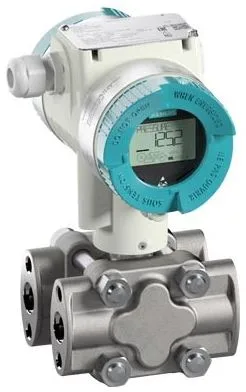

- 7MF0340-1GL01-5AM2-Z+A00+B11+E01 - P320 · 7MF0340-1GL01-5TM1-Z+A01+B20+E48+H01+U01 · 7MF0340-1MM01-5SM2-Z B30+D42+E27 · 7MF0341-1GP01-5AF2-Z C11+E00+K81+K84
- Span
- B = 1 to 20 mbar (0.4015 to 8.03 inH2O) · 1 mbar / 30 bar · B = PN 32 (MWP 464 psi) 1 to 20 mbar (0.4015 to 8.03 inH2O) · B = PN 32 (MWP 464 psi), 1 to 20 mbar (0.4015 to 8.03 inH2O)
- Process connection
- E = Female thread 1/2-14 NPT · Stainless steel 316L / 1.4404 · Stainless steel 316L/1.4404 · P = Oval flange, mounting thread: M12 (PN 420) (DIN 19213) with lateral ventilation
- Maximum measuring span
- 1000 mbar (14.5 psi) · J = Maximum measuring span: 1000 mbar (14.5 psi) · N = Maximum measuring span: 4000 mbar (58 psi) · 63 bar (914 psi)
- Wetted parts materials
- 0 = Stainless steel 316L/1.4404, stainless steel 316L/1.4404 · A = Stainless steel Process diaphragm, Stainless steel Connection shank · AProcess diaphragm : Stainless steelParts of the measuring cell : Stainless steel · B = Seal diaphragm: Hastelloy® Process connection : Stainless steel
- Non-wetted parts materials
- 1 = Die-cast aluminum · 0 = Housing diecast aluminum · 0 = Housing die-cast aluminum · 2 Process flange screws : Stainless steelElectronics housing : Diecast aluminum
