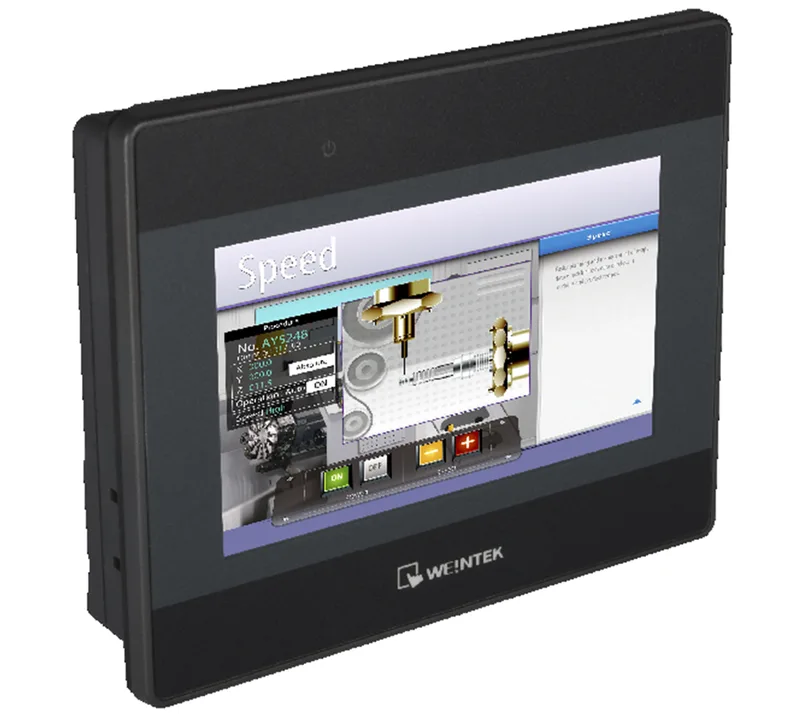

Weinview MT6050iP
MPNMT6050iP
MT (iP) series
$246.00Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Power in | 24±20%VDC |
| Enclosure_type | Plastic |
| Operating temperature high | 0° to 50°C (32° to 122°F) |
| Vibration | 10 to 25 Hz(X,Y,Z direction 2G 30 minutes) |
| Humidity max | 10 to 90% RH (non-condensing) |
| Dimensions_text | 128 x 102 x 32mm |
| Display_color_depth | 65536 colors |
| CE requirements | EN55022:2010, EN55024: 2010, EN61000-3-2:2006+A2:2009, EN6100-3-3:2008, AS/NZS CISPR22:2009+A1:2010 |
| Ram | 64 |
| Has_rtc | Built-in (CR2032 3 V lithium battery.) |
| Power | Built-in |
| Com_port | COM1 RS-232/RS-485 2 W/4 W COM3 RS-485 2 W |
All specifications+18 ▾
| Parameter | Value |
|---|---|
| Cpu_model | 32Bit RISC 400 MHz |
| USB client | USB 2.0 x 1 |
| Frame_size | 16 |
| Accuracy | 2 |
| Display_type | 4.3" TFT LCD |
| Storage_temp | -20° to 60°C (-4° to 140°F) |
| Memory storage | 128 |
| Backlight_type | LED |
| Contrast_ratio | 500:1 |
| Resistance | 500 |
| Panel cutout | 119 x 93 (4.68” x 3.66”) |
| Touch_panel_type | 4-wire Resistive Type |
| Brightness (Cd/M2) | 500 |
| Display_resolution | 480 x 272 |
| Backlight life time | >30,000 hrs. |
| Power consumption | 250mA@24VDC |
| Protection_structure | IP65 |
| Embed PLC tag information in project | yes |
MPN
MT6050iP
