Weinview MT8101iE
MPNMT8101iE

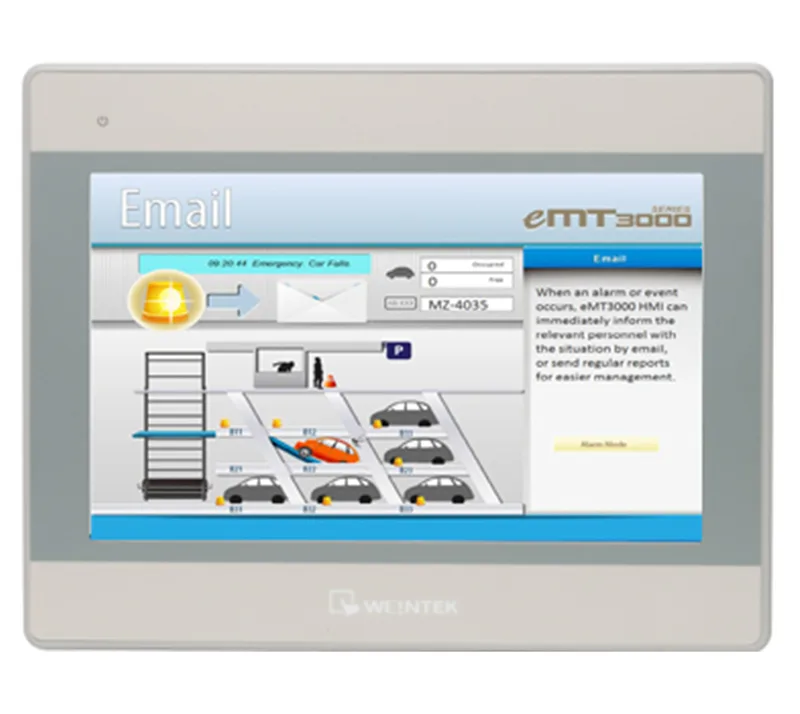

Weintek MT8101iE Human Machine Interface
$551.00 – $685.80Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jun 2026
Specifications
| Parameter | Value |
|---|---|
| Storage | 128 MB |
| Parameter | Value |
|---|---|
| Ram | 128 MB |
| Power | yes |
| Com_port | - COM1: RS-232 COM2: RS-485 2 W/4 W COM3: RS-485 2 W |
| Usb_host | USB 2.0 x 1 |
| Cpu_model | 32 bits RISC Cortex-A8 600 MHz |
| PCB coating | yes |
| Thickness | 40 |
| Panel cutout | 260 x 202mm |
| Ethernet support | 10/100 Base-T x 1 |
| Brightness (Cd/M2) | 300 |
| Display_resolution | 800 x 480 |
| Backlight life time | >30,000 hrs. |
| Display_color_depth | 262K |
MPN
MT8101iE
