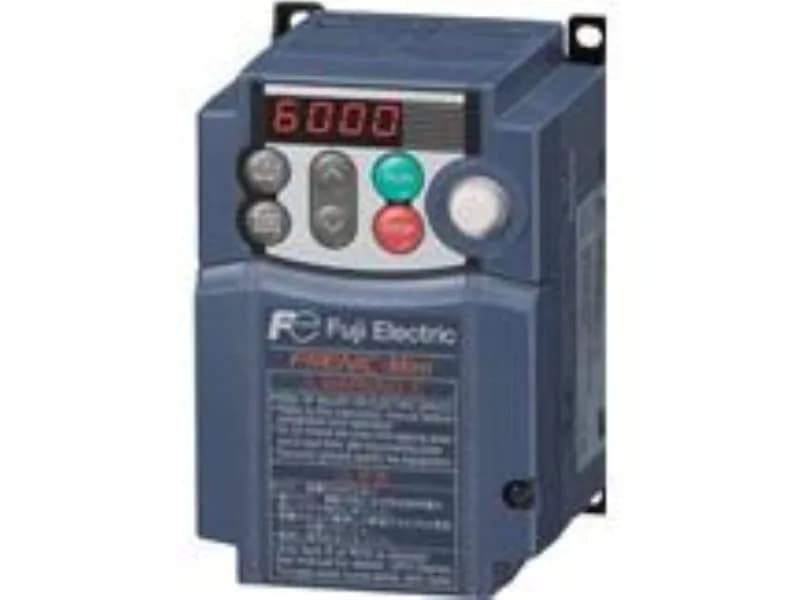

Fuji Electric FRN0002C2S-7U

Fuji Electric FRN0002C2S-7U AC Drive

MPNFRN0002C2S-7U

FUJ FRN0002C2S-7U CORE DRIVE|FUJ FRN0002C2S-7U CORE DRIVE FRENIC-MINI (C2) 1PH 230V 1/4HP

$197.70 – $237.00Ref. price · indicative, final on quote
Fuji Electric FRN0002C2S-7U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FRN0002C2S-7U key specifications
ParameterValue
SeriesFRENIC Mini-C2
Input typeAnalog; Digital
Output signalAnalog; Digital
Control typeKeypad
Display typeLED
Input voltage230V AC
Output voltage200 to 240V AC
Input voltage range200V-240V AC +/-10%
Output voltage range0V AC to 230V AC
Maximum output current1.5 A
Maximum output power1/4 hp
Torque @ 1150%

All specifications

FRN0002C2S-7U additional specifications
ParameterValue
Input frequency50/60 Hz
Output frequency range0.1 to 400 Hz
I/O channels(5) Digital; (2) Analog
Input phase ACSingle
Output phase ACThree
EnclosureOpen
IP ratingNEMA 1
ColorBlue
Overall depth3-1/8 in
Overall width3-1/8 in
Overall height4-3/4 in
StandardsCE, EN61800-5-1, UL 508C
BrandFUJI ELECTRIC
StyleHeat Sink
DisplaysLED
ProtectionExternal alarm input; Ground fault; Input phase loss; Output phase loss detected; Overcurrent; Overheating; Overload; Overvoltage; Short-circuit; Undervoltage
ApplicationCentrifugal Separators; Conveyors; Fans; Food Processing Machines; Pumps
Control methodKeypad
Digital readoutCurrent, Frequency, PID Operating Data, Speed, Voltage Output
Dynamic brakingNo
Starting torque150%
Start (Stop control)Programmable
Torque applicationConstant Torque
Brake chopper includedNo
Ethernet port includedNo
With bypass (No bypass)No Bypass
Adjustable acceleration time0 to 3,600 sec
Adjustable deceleration time0 to 3,600 sec
With line contactor (No line contactor)No Line Contactor
MPN
FRN0002C2S-7U
