Fuji Electric FRN0005C2S-4C

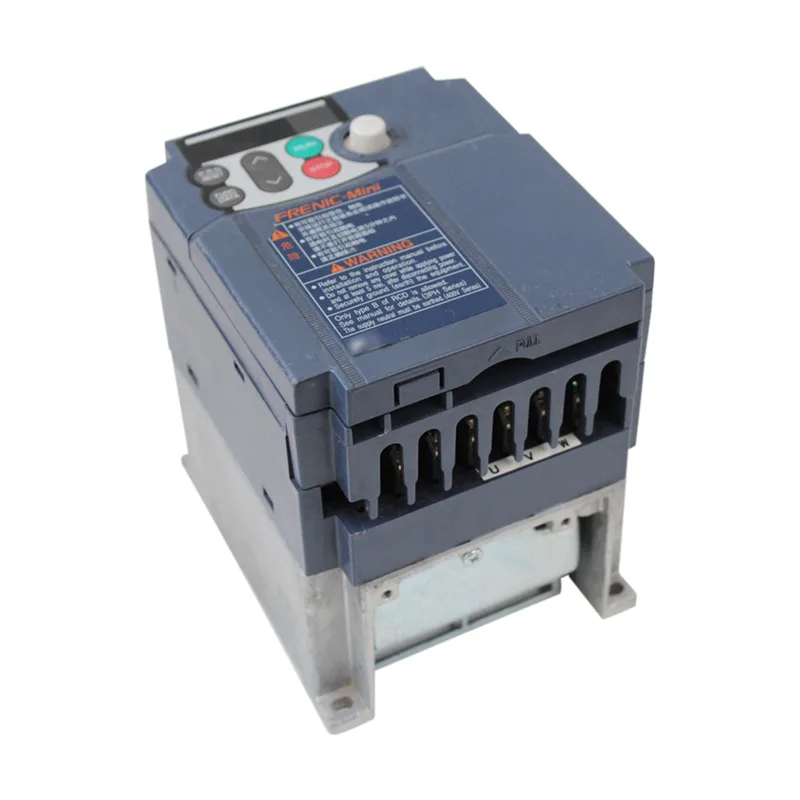

Fuji FRN0005C2S-4C FRENIC Series Inverter, 400V 3-Phase, 10A

MPN FRN0005C2S-4C

Fuji FRENIC Series Inverter, FRN0005C2S-4C, three-phase 400V supply, 10A circuit breaker rating, filter type FS20229-9-07.

$306.00 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & stockist· Listing updated Sep 2026

Specifications

FRN0005C2S-4C specifications
ParameterValue
Product typeFRENIC Series Inverter

Product details

The Fuji FRN0005C2S-4C is a FRENIC Series Inverter rated for three-phase 400V supply with a 10A circuit breaker recommendation and a matching 10A Class J fuse for branch-circuit protection. The filter type FS20229-9-07 is integrated on the line side to attenuate conducted emissions — mount the drive close to the line entry so the filter's common-mode choke sees clean AC before the DC bus. For a 400V class drive this size, the 10A breaker and fuse pair gives a straightforward coordination point for the panel builder; no need to oversize for inrush on a standard induction motor start.

Wiring practice note

The 10A circuit breaker and Class J fuse are the manufacturer's specified overcurrent protection — wire the drive input through a 10A breaker first, then the Class J fuse holder, then the drive line terminals. The filter type FS20229-9-07 is internal to the drive enclosure, so no external EMC filter is required for most installations. Keep the input power cable twisted and shielded from the panel entry to the drive to preserve the filter's attenuation above 150 kHz.

MPN
FRN0005C2S-4C
