The FRN0012C2S-7: The 2.2 kW rating at 220V (0012 current code) is the motor output the drive can deliver continuously under normal duty. Single-phase 200V input means it's designed for regions with 200V class single-phase mains — common in Japan and parts of Asia. The compact form factor (C application area) saves panel space but typically omits built-in EMC filter or braking transistor that larger frames include; check your application for those add-ons.

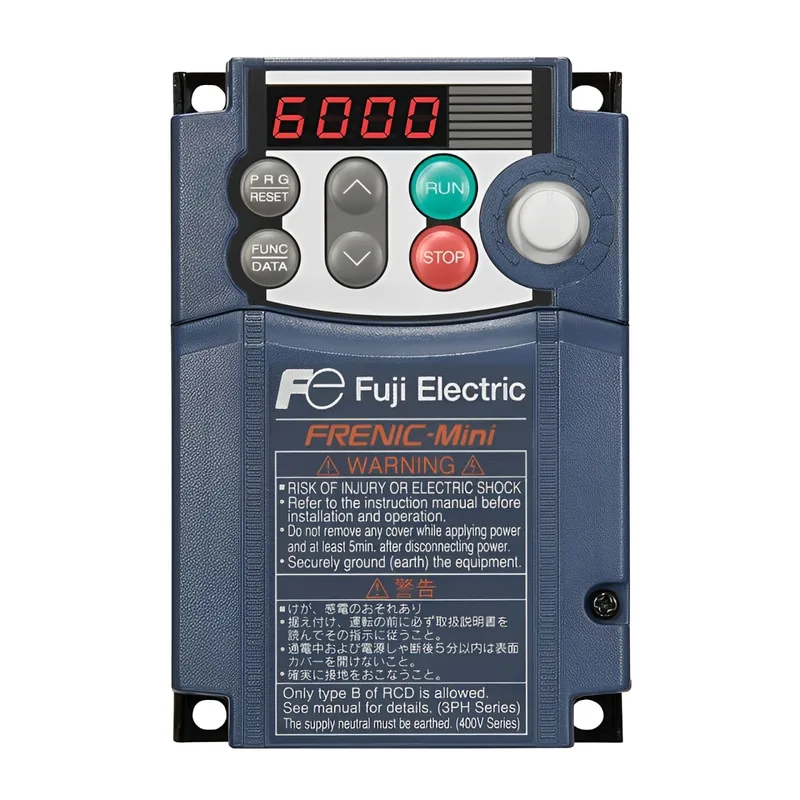

FRN0012C2S-7 FRENIC Compact Inverter, 2.2 kW, Single-Phase 2
MPNFRN0012C2S-7
Fuji Electric FRENIC series, compact inverter, FRN0012C2S-7, 2.2 kW / 220V, single-phase 200V input, IP20 enclosure.
$405.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Enclosure | S = Standard (IP20) (UL Open Type) |
| Series name | FRN = FRENIC series |
| Application area | C = Compact |
| Weight [kg(Ibs)] | 2.5 (5.5) |
| Input power source | 7 = Single-phase 200V |
| Applicable current rating | 0012 = 2.2 kW | 220V |
| Developed inverter series | 2 = 2-series |
Product details
Frequently asked questions
What is FRN0012C2S-7's enclosure type?
The enclosure is S = Standard (IP20) (UL Open Type), meaning it's rated for indoor panel installation with protection against solid objects larger than 12 mm, but not against water ingress.
What series does FRN0012C2S-7 belong to?
It belongs to the FRENIC series from Fuji Electric, specifically the 2-series generation of compact inverters.
What is the input power requirement for FRN0012C2S-7?
It requires single-phase 200V input power.
What motor rating does FRN0012C2S-7 support?
It supports a 2.2 kW motor at 220V.
