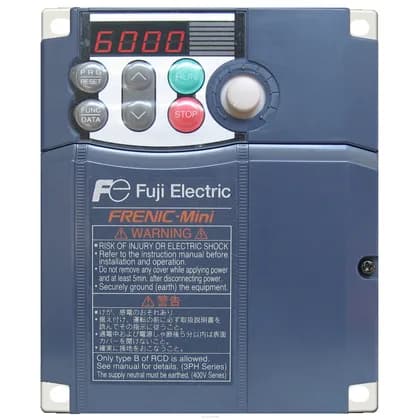

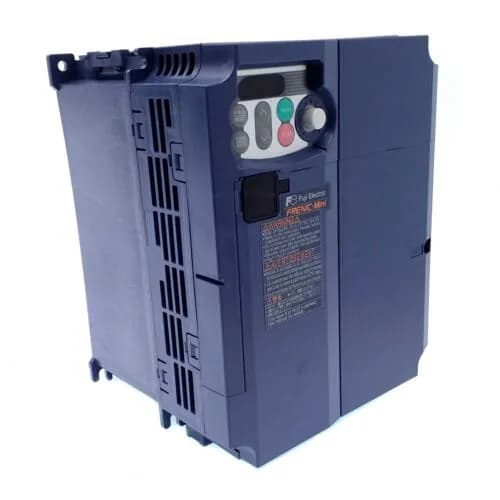

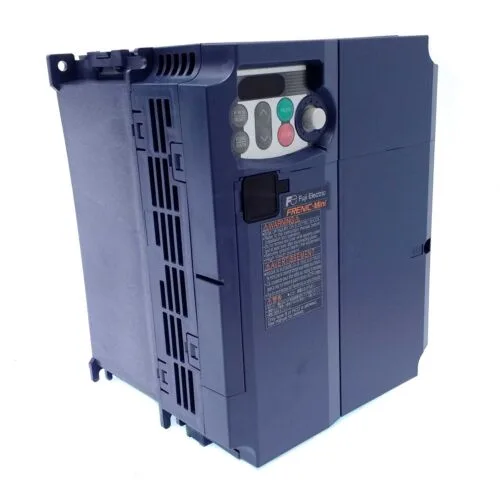

Fuji Electric FRN0033C2S-2U

Fuji FRN0033C2S-2U FRENIC Mini-C2, 33A 10hp 230V

MPNFRN0033C2S-2U

Fuji FRENIC Mini-C2 FRN0033C2S-2U AC Drive, 230V Three-Phase, 33A, 10 hp, 0.1-400 Hz, NEMA 1.

$688.01 – $818.28Ref. price · indicative, final on quote
Fuji Electric FRN0033C2S-2U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FRN0033C2S-2U key specifications
ParameterValue
SeriesFRENIC Mini-C2
Input typeAnalog; Digital
Output signalAnalog; Digital
Control typeKeypad
Display typeLED
Input voltage230V AC
Output voltage200 to 240V AC
Input voltage range200V-240V AC +10% / -15%
Output voltage range0V AC to 230V AC
Maximum output current33 A
Maximum output power10 hp
Torque @ 1150%

All specifications

FRN0033C2S-2U additional specifications
ParameterValue
Input frequency50/60 Hz
Output frequency range0.1 to 400 Hz
I/O channels(5) Digital; (2) Analog
Input phase ACThree
Output phase ACThree
EnclosureOpen
IP ratingNEMA 1
ColorBlue
Overall depth6-1/4 in
Overall width7-1/8 in
Overall height8-5/8 in
StandardsCE, EN61800-5-1, UL 508C
StyleHeat Sink
DisplaysLED
Sub-brandFUJI
ProtectionExternal alarm input; Ground fault; Input phase loss; Output phase loss detected; Overcurrent; Overheating; Overload; Overvoltage; Short-circuit; Undervoltage
ApplicationCentrifugal Separators; Conveyors; Fans; Food Processing Machines; Pumps
Control methodKeypad
Digital readoutCurrent, Frequency, PID Operating Data, Speed, Voltage Output
Dynamic brakingYes
Starting torque150%
Start (Stop control)Programmable
Torque applicationConstant Torque
Brake chopper includedYes
Ethernet port includedNo
With bypass (No bypass)No Bypass
Adjustable acceleration time0 to 3,600 sec
Adjustable deceleration time0 to 3,600 sec
With line contactor (No line contactor)No Line Contactor

Product details

Fuji FRN0033C2S-2U is a FRENIC Mini-C2 AC drive for 10 hp motors on 230V three-phase, output 33 A continuous from 0.1 to 400 Hz, with torque holding at 150% down to 1 Hz and a built-in brake chopper for deceleration.

Inputs, Outputs, and Mounting

Control offers five digital inputs and two analog inputs; feedback includes two digital and one analog output. The keypad is the primary interface with an LED display for current, frequency, PID data, and speed. Enclosure is NEMA 1 open type, dimensions 8-5/8 in H × 7-1/8 in W × 6-1/4 in D, suitable for panel-mount installations.

Frequently asked questions

What compliance documentation does FRN0033C2S-2U carry?

The drive is certified to CE, EN61800-5-1, and UL 508C.

What are the color and style listings for this drive?

The color is Blue and the style is Heat Sink.
