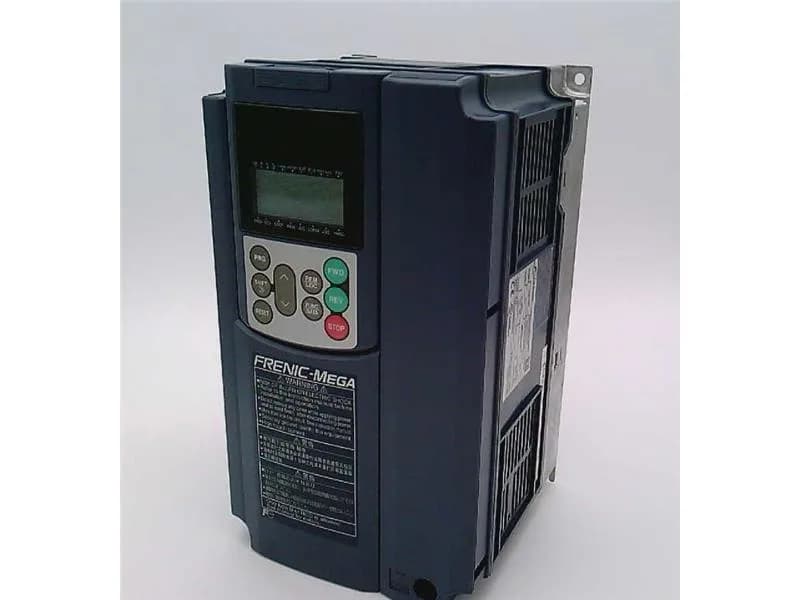

Fuji Electric FRN005G1S-2U MEGA Drive
MPNFRN005G1S-2U
FUJ FRN005G1S-2U CORE DRIVE|FUJ FRN005G1S-2U CORE DRIVE FRENIC-MEGA (G1) 3PH 230V 005HP
$706.00 – $934.19Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FRENIC-MEGA |
| Input type | Analog; Digital |
| Output signal | Analog; Digital |
| Control type | Keypad |
| Display type | LED |
| Input voltage | 240V AC |
| Output voltage | 240V AC |
| Input voltage range | 200 to 240V AC |
| Output voltage range | 200V AC to 240V AC |
| Maximum output current | 18 A |
| Maximum output power | 5 hp |
| Torque @ 1 | 200% |
All specifications
| Parameter | Value |
|---|---|
| Input frequency | 50/60 Hz |
| Output frequency range | 25 to 500 Hz |
| I/O channels | (2) Safety, (3) Analog, (9) Digital |
| Input phase AC | Single; Three |
| Output phase AC | Three |
| Enclosure | Open |
| IP rating | NEMA 1 |
| Color | Blue |
| Overall depth | 5-3/4 in |
| Overall width | 5-7/8 in |
| Overall height | 10-1/4 in |
| Standards | C22.2 No. 14; CE EN61800-5-1; cUL UL508C; EN61800-5:2007; RoHS Compliant 2002/96/EC; UL |
| Brand | FUJI ELECTRIC |
| Style | Compact/Heat Sink |
| Displays | LCD Keypad |
| Sub-brand | Fuji Electric |
| Application | Precise Motor Control |
| Control method | Keypad |
| Dynamic braking | No |
| Starting torque | 200% |
| Start (Stop control) | Automatic; Manual; Programmable |
| Torque application | Constant Torque; Variable Torque |
| Brake chopper included | No |
| Ethernet port included | Yes |
| With bypass (No bypass) | No Bypass |
| Adjustable acceleration time | 0 to 6,000 sec |
| Adjustable deceleration time | 0 to 6,000 sec |
| With line contactor (No line contactor) | No Line Contactor |
MPN
FRN005G1S-2U
