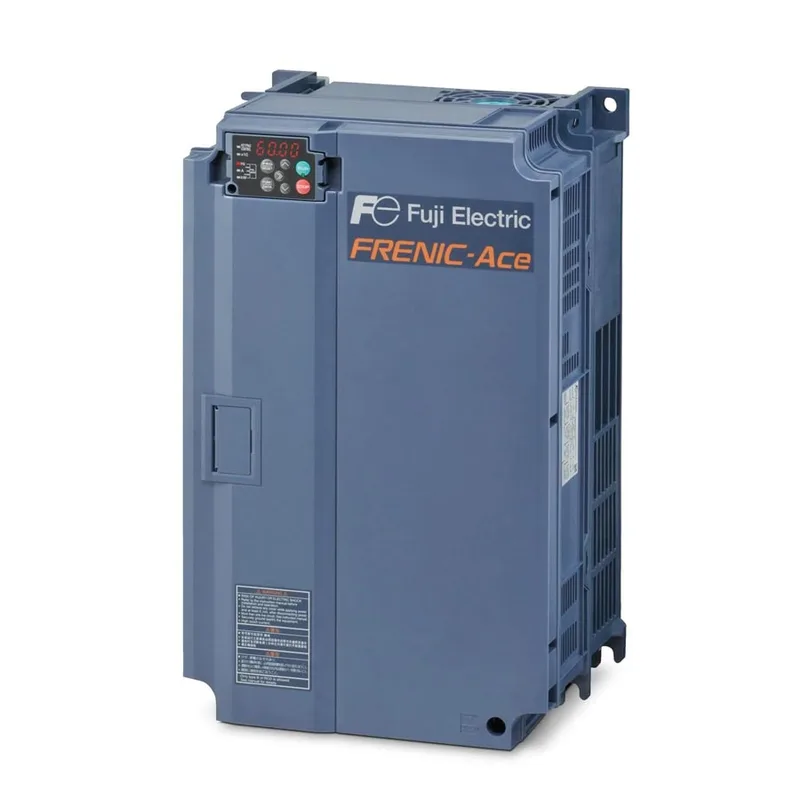

Fuji Electric FRN0072E2S-4C
MPNFRN0072E2S-4C
High Performance Inverters
$2,179.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Nominal applied motor [Kw(Hp)] | ND - 37(50) |
| Enclosure_type | IP20 |
| Braking | Braking Torque [%]: ND - 12%Braking chopper: Built-inMinimum connectable resistance [ohm]: 16Minimum resistance which can be connected [Ω] *9: 16Braking resistor " Option |
| Has_dcr | ND - 68.5 |
| Power | Three-phase 380 V to 480 V (With AVR) |
| Torque | -12 |
| Frequency | Voltage: +10 to -15% (Voltage unbalance: 2% or less, Frequency: +5 to -5%) |
| Product type | High Performance Inverters |
| Input_ratings | Main power supply: Three-phase 380 V to 480 V (With AVR)Voltage/frequency variations:Voltage: +10 to -15% (Voltage unbalance: 2% or less, Frequency: +5 to -5%)Rated Current:Without DCR: ND - 94.3With DCR: ND - 68.5Required power supply capacity: ND - 47 |
| Cooling_method | Fan cooling |
| Dc_reactor_dcr | Option |
| Output_ratings | Rated capacity [kVA]: ND - 55Rated voltage [V]: Three-phase 380 V to 480 V (With AVR)Rated current [A]: ND - 72.0Overload capability: ND - 120% of nominal current for 1 min |
| Resistance | 16 |
| Braking_chopper | Built-in |
| Supply voltage | 380 |
| Overload_capability | ND - 120% of nominal current for 1 min |
| Switching current | -72 |
| Rated capacity [Kva] | ND - 55 |
MPN
FRN0072E2S-4C
