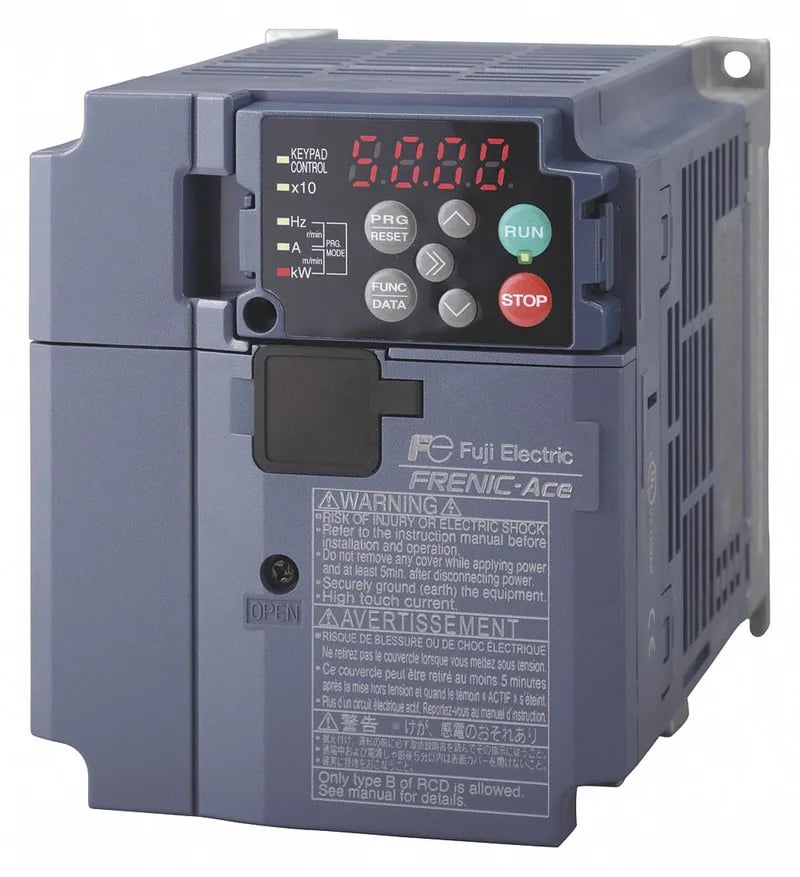

Fuji Electric FRN0115E2S-2GB
MPNFRN0115E2S-2GB
Adjustable frequency AC drive with customizable logic for up to 200 steps
$303.00Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FRENIC - ACE |
| Input type | Analog; Digital |
| Output signal | Analog; Digital |
| Control type | Remote Keypad, Communication Option Adapter |
| Display type | LED |
| Input voltage | 230V AC |
| Output voltage | 240V AC |
| Input voltage range | 200V-240V AC +10% / -15% |
| Output voltage range | 0V AC to 230V AC |
| Maximum output current | 115 A |
| Maximum output power | 40 hp |
| Torque @ 1 | 150% |
All specifications
| Parameter | Value |
|---|---|
| Input frequency | 50/60 Hz |
| Output frequency range | 500 Hz |
| I/O channels | (5) Digital; (2) Analog |
| Input phase AC | Three |
| Output phase AC | Three |
| Enclosure | Open |
| IP rating | NEMA 1 |
| Color | Blue |
| Overall depth | 7-1/2 in |
| Overall width | 9-7/8 in |
| Overall height | 15-3/4 in |
| Standards | UL/cUL 508C C22.2 No.14, CE, RoHs, GOST-R, KC |
| Brand | FUJI ELECTRIC |
| Style | Heat Sink |
| Displays | System Operation and Associated Value Conversion, Status of I/O, Operations and Alarms |
| Sub-brand | FUJI |
| Protection | Auto-reset; Auto-restart after momentary power failure; Droop control; Overload stopping |
| Application | Fans; Pumps; Wire Drawing |
| Control method | V/F Control (IM), Dynamic Torque Vector Control (IM), V/F Control with Slip Compensation (IM), V/F Control with Encoder Option (IM), Vector Control with Encoder Option (IM), Sensor less Vector Control (PMSM) |
| Digital readout | Output Current, Output Voltage , Calculated torque [%], Input power [kW], Timer (Timer operation)[s], Load factor [%], Motor output [kW] |
| Dynamic braking | Yes |
| Key pad lockout | Password Lockout |
| Starting torque | 120% |
| Start (Stop control) | Programmable |
| Torque application | Constant Torque; Variable Torque |
| Brake chopper included | Yes |
| Ethernet port included | No |
| With bypass (No bypass) | No Bypass |
| Accepts input control signal | Remote Contact |
| Adjustable acceleration time | 0 to 6,000 sec |
| Adjustable deceleration time | 0 to 6,000 sec |
| With line contactor (No line contactor) | No Line Contactor |
MPN
FRN0115E2S-2GB
