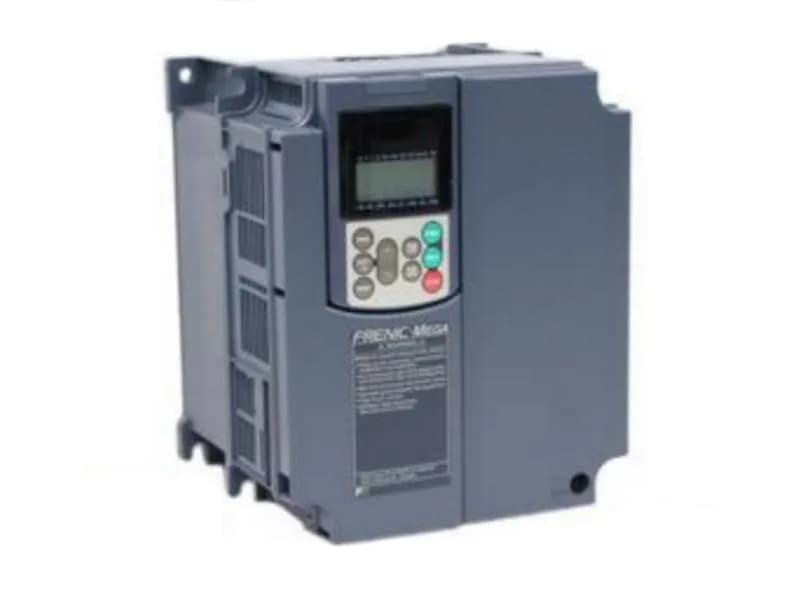

Fuji Electric FRN015G1S-4U MEGA Drive
MPNFRN015G1S-4U
Drive, Frenic-Mega, 15HP, 380-480VAC, 18.5A, Keypad, LCD Screen|Drive, Frenic-Mega, 15 Horse Power, 380 - 480 Volt AC, 18.5 Amp, Keypad, LCD Screen
$706.00 – $1,559.04Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →Specifications
| Parameter | Value |
|---|---|
| Series | FRN |
| Input type | Analog |
| Output signal | Digital |
| Control type | Keypad |
| Display type | LCD/LED |
| Input voltage | 460V AC |
| Output voltage | 480V AC |
| Input voltage range | 380 to 480V AC |
| Output voltage range | 380V AC to 480V AC |
| Maximum output current | 23 A |
| Maximum output power | 15 hp |
| Input frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Output frequency range | 0 to 500 Hz |
| I/O channels | (3) Analog (11) Digital |
| Input phase AC | Three |
| Output phase AC | Three |
| Enclosure | Open |
| IP rating | IP20 |
| Color | Blue |
| Overall depth | 7-5/8 in |
| Overall width | 8-5/8 in |
| Overall height | 10-1/4 in |
| Standards | C22.2 No.14; EN61800-5-1:2007; UL 508C |
| Brand | FUJI ELECTRIC |
| Style | Compact/Heat Sink |
| Displays | LCD/LED Keypad |
| Sub-brand | Fuji Electric |
| Protection | Overload Prevention Control |
| Application | Mechanical Braking Control; Positioning Control |
| Control method | Keypad |
| Digital readout | Motor Speed; Output Current; Output Frequency; Output Voltage |
| Dynamic braking | Yes |
| Key pad lockout | Stop Key |
| Starting torque | 200% |
| Start (Stop control) | Manual |
| Torque application | Constant Torque; Variable Torque |
| Brake chopper included | No |
| Ethernet port included | Yes |
| With bypass (No bypass) | No Bypass |
| Adjustable acceleration time | 0 to 6,000 sec |
| Adjustable deceleration time | 0 to 6,000 sec |
| With line contactor (No line contactor) | No Line Contactor |
MPN
FRN015G1S-4U
