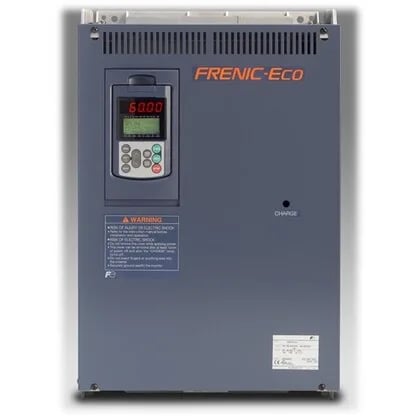

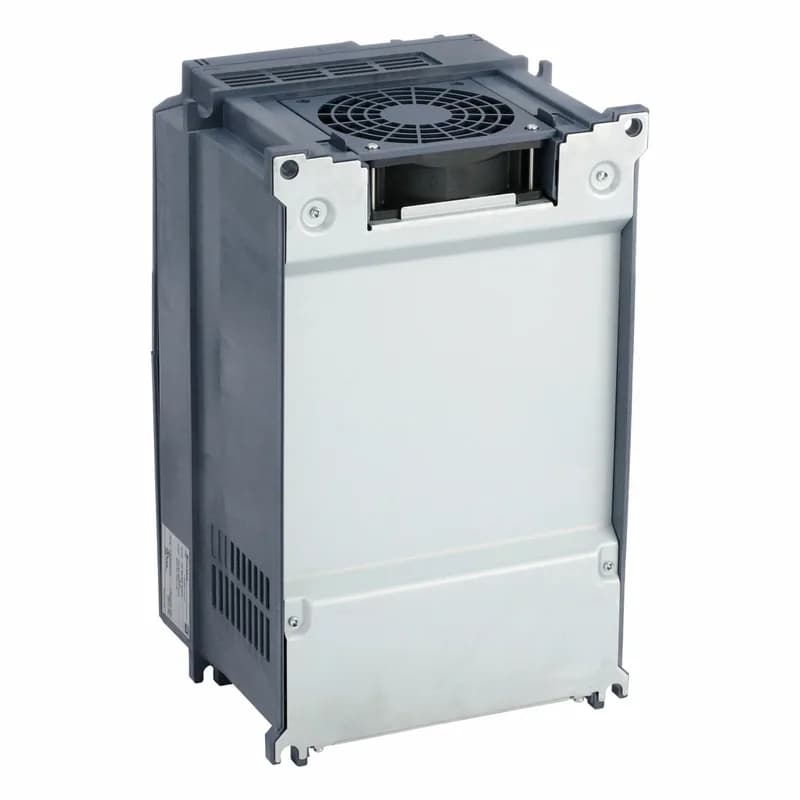

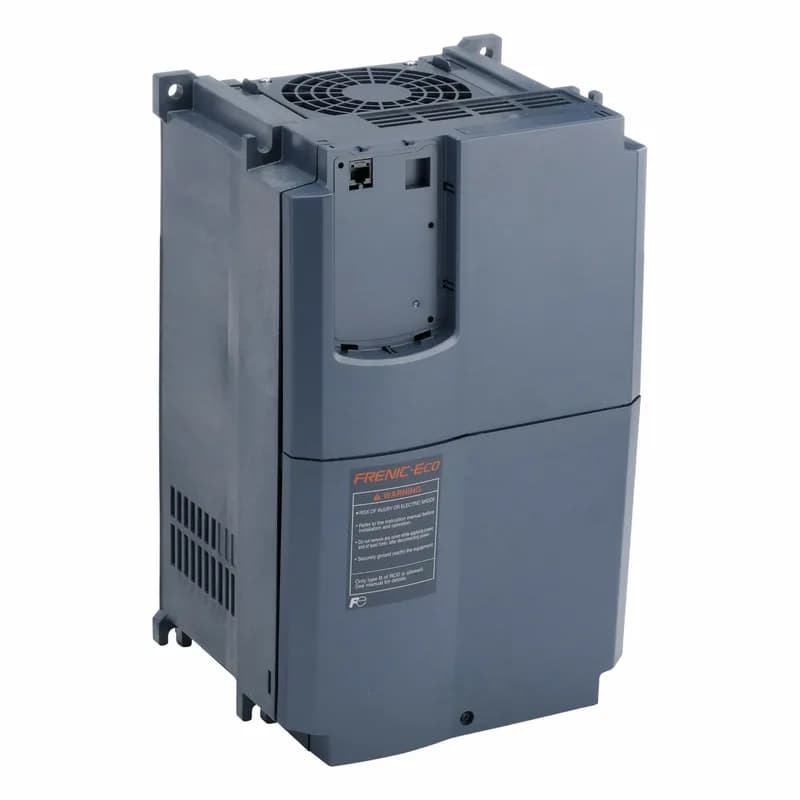

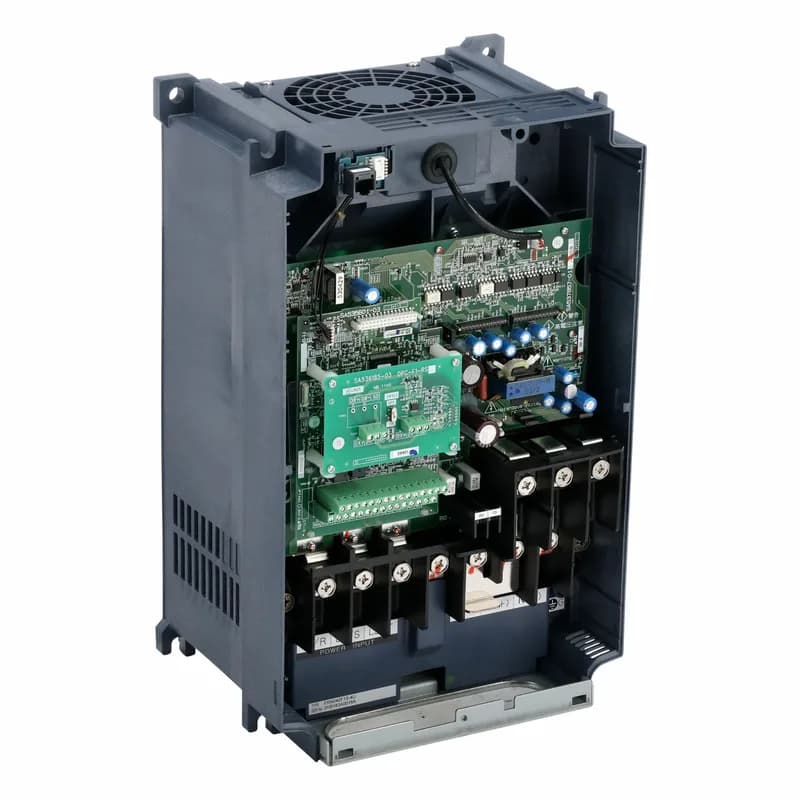

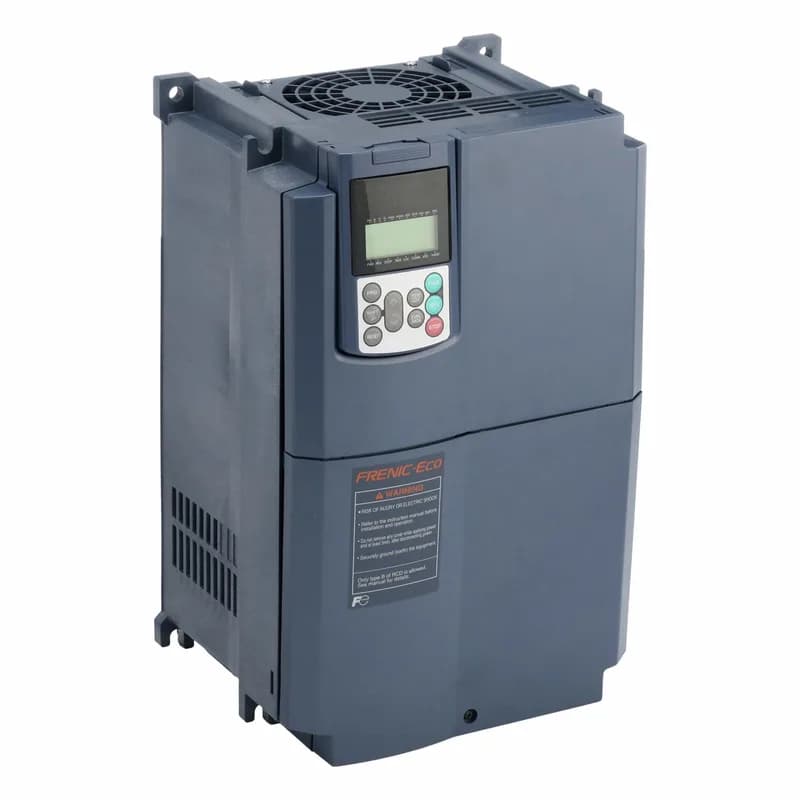

Fuji Electric FRN040F1S-4U

Fuji Electric FRN040F1S-4U ECO Drive

MPNFRN040F1S-4U

FUJ FRN040F1S-4U CORE DRIVE|FUJ FRN040F1S-4U CORE DRIVE FRENIC-ECO (F1) 3PH 460V 040HP

$800.00Ref. price · indicative, final on quote
Fuji Electric FRN040F1S-4U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FRN040F1S-4U key specifications
ParameterValue
SeriesFRENIC - Eco
Input typeAnalog; Digital
Output signalAnalog; Digital
Control typeKeypad, Remote
Display typeLCD, LED
Input voltage460V AC
Output voltage480V AC
Input voltage range380V-480V AC +10% / -15%
Output voltage range0V AC to 460V AC
Maximum output current59 A
Maximum output power40 hp
Torque @ 150%

All specifications

FRN040F1S-4U additional specifications
ParameterValue
Input frequency50/60 Hz
Output frequency range0.1 to 120 Hz
I/O channels(7) Digital; (3) Analog
Input phase ACThree
Output phase ACThree
EnclosureOpen
IP ratingNEMA 1
ColorBlue
Overall depth8-1/2 in
Overall width9-7/8 in
Overall height15-3/4 in
StandardsUL508C, C22.2 No.14, EN50178-1997
BrandFUJI ELECTRIC
StyleHeat Sink
DisplaysMotor Speed With Percent, Alarm Code, Menu, Function Code
ProtectionDrive Thermal Overload; Motor Thermal Overload; Over breaking; Overvoltage; Phase Failure; Phase to Phase or Phase to Ground Short Circuit; Under voltage
ApplicationHV AC
Control methodVariable Frequency Control
Digital readoutOutput Frequency, Output Current, Output Voltage
Dynamic brakingYes
Starting torque50%
Start (Stop control)Programmable
Torque applicationVariable Torque
Brake chopper includedNo
Ethernet port includedNo
With bypass (No bypass)No Bypass
Accepts input control signalRemote Contact
Adjustable acceleration time0 to 3,600 sec
Adjustable deceleration time0 to 3,600 sec
With line contactor (No line contactor)No Line Contactor
MPN
FRN040F1S-4U
