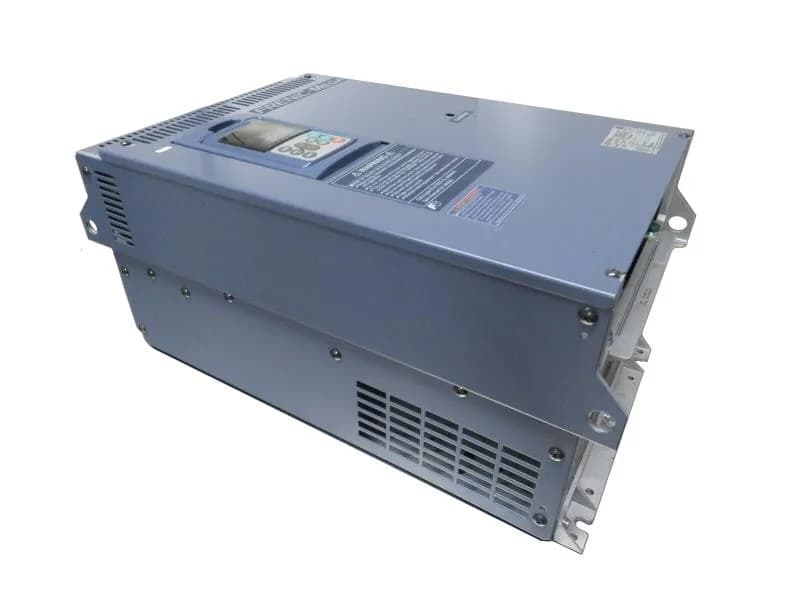

Fuji Electric FRN060G1S-4U

Fuji FRN060G1S-4U AC Drive 60 HP

MPNFRN060G1S-4U

Variable Speed Drive, Frenic, 60HP, 460VAC, 75A, 3PH, with Brake|Variable Speed Drive, Frenic, 60 Horse Power, 60kVA, 460 Volt AC, 75 Amp, 3-Phase, Built In Brake Transistor, Heavy Duty, IP20/Open

$706.00Ref. price · indicative, final on quote
Fuji Electric FRN060G1S-4U datasheet (PDF)
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
How we verify every order →

Specifications

FRN060G1S-4U key specifications
ParameterValue
SeriesFRN
Input typeAnalog
Output signalDigital
Control typeKeypad
Display typeLCD/LED
Input voltage460V AC
Output voltage480V AC
Input voltage range380 to 480V AC
Output voltage range380V AC to 480V AC
Maximum output current91 A
Maximum output power60 hp
Input frequency50/60 Hz

All specifications

FRN060G1S-4U additional specifications
ParameterValue
Output frequency range0 to 500 Hz
I/O channels(3) Analog (11) Digital
Input phase ACThree
Output phase ACThree
EnclosureOpen
IP ratingIP00
ColorBlue
Overall depth10-5/8 in
Overall width14 in
Overall height24-1/4 in
StandardsC22.2 No.14; EN61800-5-1:2007; UL 508C
BrandFUJI ELECTRIC
StyleCompact/Heat Sink
DisplaysLCD/LED Keypad
Sub-brandFuji Electric
ProtectionOverload Prevention Control
ApplicationMechanical Braking Control; Positioning Control
Control methodKeypad
Digital readoutMotor Speed; Output Current; Output Frequency; Output Voltage
Dynamic brakingYes
Key pad lockoutStop Key
Starting torque180%
Start (Stop control)Manual
Torque applicationConstant Torque; Variable Torque
Brake chopper includedNo
Ethernet port includedYes
With bypass (No bypass)No Bypass
Adjustable acceleration time0 to 6,000 sec
Adjustable deceleration time0 to 6,000 sec
With line contactor (No line contactor)No Line Contactor
MPN
FRN060G1S-4U
