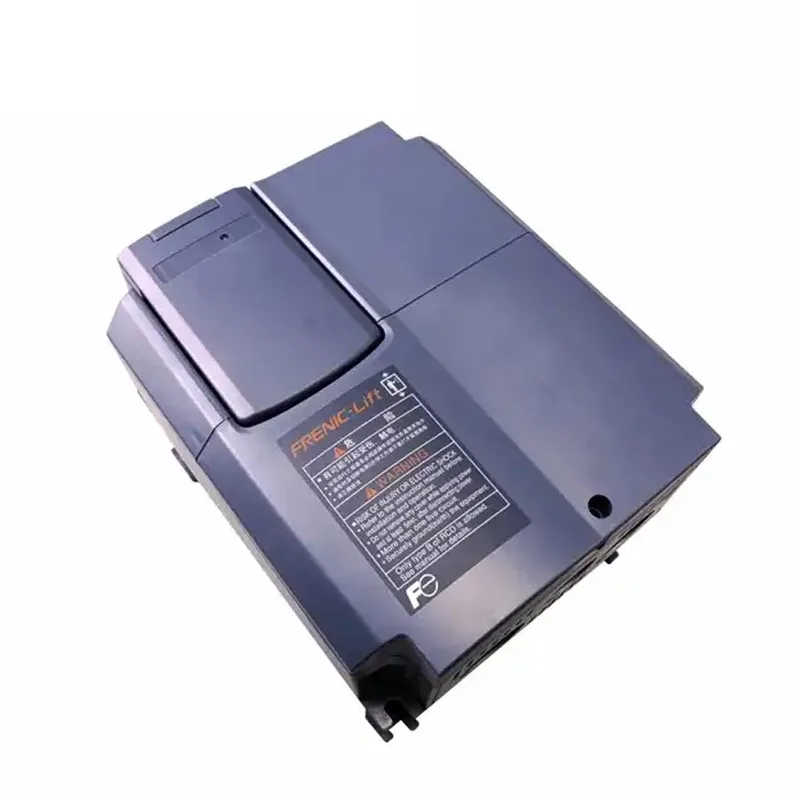

Fuji Electric FRN11LM1S-4C
MPNFRN11LM1S-4C
Frenic-Lift Elevator AC Drive
$1,564.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Applicable motor rating *1 [Kw] | 11 |
| Braking Duty-Cycle (%Ed) *14 [%] | 50 |
| Enclosure_type | IP20 |
| Applicable_safety_standard | EN61800-5-1:2003, EN954-1 Category3 *15 |
| Braking | Braking time *14 [s]: 60Braking duty-cycle (%ED) *14 [%]: 50Rated regenerative power *14 [kW]: 8.8Minimum resistance which can be connected [Ω] *9: 24 |
| Has_dcr | 21.1 |
| Power | 15 |
| Frequency | 33 |
| Product type | Frenic-Lift Elevator AC Drive |
| Input_ratings | Normal operation:Main power supply Phases, Voltage, Frequency: Three-phase, 380 to 480 V, 50/60HzAuxiliary control power input *12 Phases, Voltage, Frequency: Single-phase, 200 to 480 V, 50/60HzVoltage/frequency variations *8: Voltage: +10 to -15% (Voltage unbalance: 2% or less *5) Frequency: +5 to -5%Rated current *6 [A]:with DCR: 21.1without DCR: 33Required power supply capacity *7 [kVA]: 15Battery operation:Main power supply: DC 48 V or more in the direct current voltage conversionAuxiliary control power input *12:Phases, Voltage, Frequency: Single-phase, 200 to 480 V, 50/60HzVoltage/frequency variations:Voltage: +10 to -15%,Frequency: +5 to -5%Operation time *13 [s]: 180 |
| Cooling_method | Fan cooling |
| Dc_reactor_dcr | Option |
All specifications
| Parameter | Value |
|---|---|
| Output_ratings | Rated capacity *2 [kVA]: 18Rated voltage *3 [V]: Three-phase 380 V-480 V, 50/60HzRated current *4 [A]: 24.5Overload capacity [A] (Permissible energizing time): 49.0 (10s)Overload capacity at carrier frequency 16 kHz *16 [A] (Permissible energizing time): 33 (10s)Rated frequency [Hz]: 50, 60 Hz |
| Resistance | 24 |
| Normal_operation | Main power supply Phases, Voltage, Frequency: Three-phase, 380 to 480 V, 50/60HzAuxiliary control power input *12 Phases, Voltage, Frequency: Single-phase, 200 to 480 V, 50/60HzVoltage/frequency variations *8: Voltage: +10 to -15% (Voltage unbalance: 2% or less *5) Frequency: +5 to -5%Rated current *6 [A]:with DCR: 21.1without DCR: 33Required power supply capacity *7 [kVA]: 15 |
| Supply voltage | 380 |
| Battery_operation | Main power supply: DC 48 V or more in the direct current voltage conversionAuxiliary control power input *12:Phases, Voltage, Frequency: Single-phase, 200 to 480 V, 50/60HzVoltage/frequency variations:Voltage: +10 to -15%,Frequency: +5 to -5%Operation time *13 [s]: 180 |
| Switching current | 24.5 |
| Braking time *14 [S] | 60 |
| Operation time *13 [S] | 180 |
| Rated capacity *2 [Kva] | 18 |
MPN
FRN11LM1S-4C
