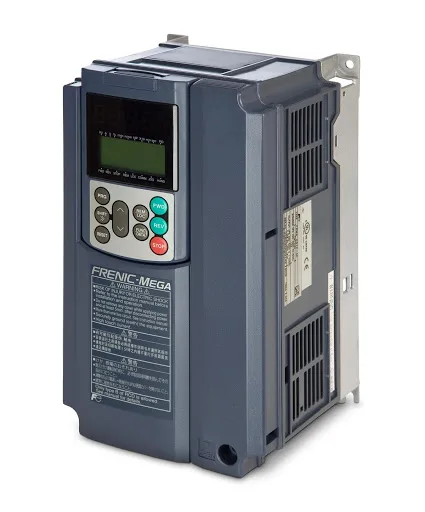

Fuji FRN200G1S-4U AC Drive 200 HP
MPNFRN200G1S-4U
Variable Speed Drive, Frenic, 150HP, 460VAC, 210A, 3PH, with Brake|Variable Speed Drive, Frenic, 150 Horse Power, 167kVA, 460 Volt AC, 210 Amp, 3-Phase, Built In Brake Transistor, Heavy Duty, IP20/Open
$706.00Ref. price · indicative, final on quote
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | FRN |
| Input type | Analog |
| Output signal | Digital |
| Control type | Keypad |
| Display type | LCD/LED |
| Input voltage | 460V AC |
| Output voltage | 480V AC |
| Input voltage range | 380 to 480V AC |
| Output voltage range | 380V AC to 480V AC |
| Maximum output current | 253 A |
| Maximum output power | 200 hp |
| Input frequency | 50/60 Hz |
All specifications
| Parameter | Value |
|---|---|
| Output frequency range | 0 to 500 Hz |
| I/O channels | (13) Analog, (6) Digital |
| Input phase AC | Three |
| Output phase AC | Three |
| Enclosure | Open |
| IP rating | IP00 |
| Color | Blue |
| Overall depth | 12-3/8 in |
| Overall width | 20-7/8 in |
| Overall height | 29-1/8 in |
| Standards | C22.2 No.14; EN61800-5-1:2007; UL 508C |
| Brand | FUJI ELECTRIC |
| Style | Compact/Heat Sink |
| Displays | LCD/LED Keypad |
| Sub-brand | Fuji Electric |
| Protection | Overload Prevention Control |
| Application | Mechanical Braking Control; Positioning Control |
| Control method | Keypad |
| Digital readout | Motor Speed; Output Current; Output Frequency; Output Voltage |
| Dynamic braking | Yes |
| Key pad lockout | Stop Key |
| Starting torque | 180% |
| Start (Stop control) | Manual |
| Torque application | Constant Torque; Variable Torque |
| Brake chopper included | No |
| Ethernet port included | Yes |
| With bypass (No bypass) | No Bypass |
| Adjustable acceleration time | 0 to 6,000 sec |
| Adjustable deceleration time | 0 to 6,000 sec |
| With line contactor (No line contactor) | No Line Contactor |
MPN
FRN200G1S-4U
