The FUJI NW0P60T-31 is a Basic Unit with 60-point I/O capacity, accepting either 100…240 VAC / 50/60 Hz / 75 VA or 24 VDC / 300 mA as the power supply. Inputs are 24 VDC at 5 mA per point; outputs are 24 VDC at 0.5 A per point. This is the core rack or backplane unit that hosts the I/O modules in a FUJI PLC system.

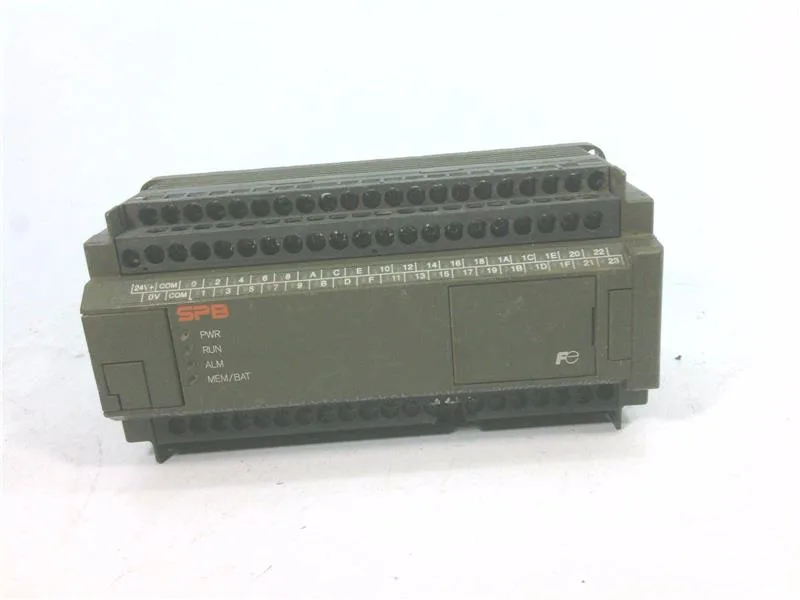

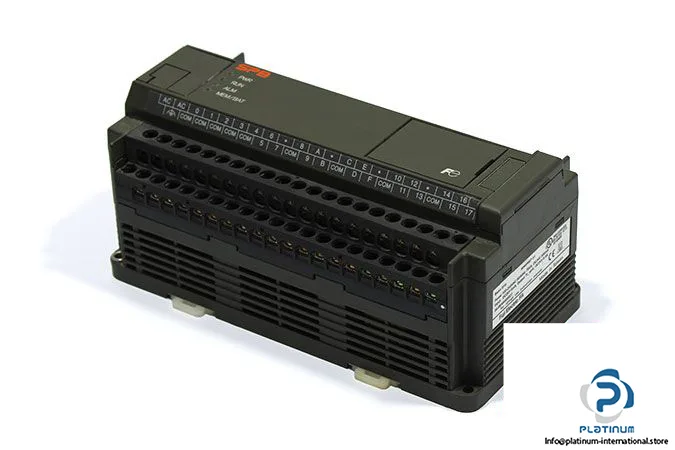

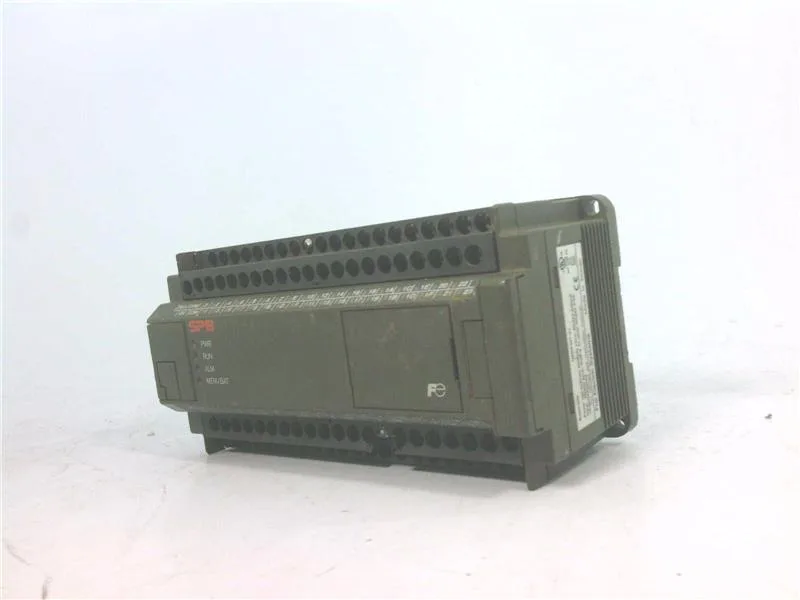

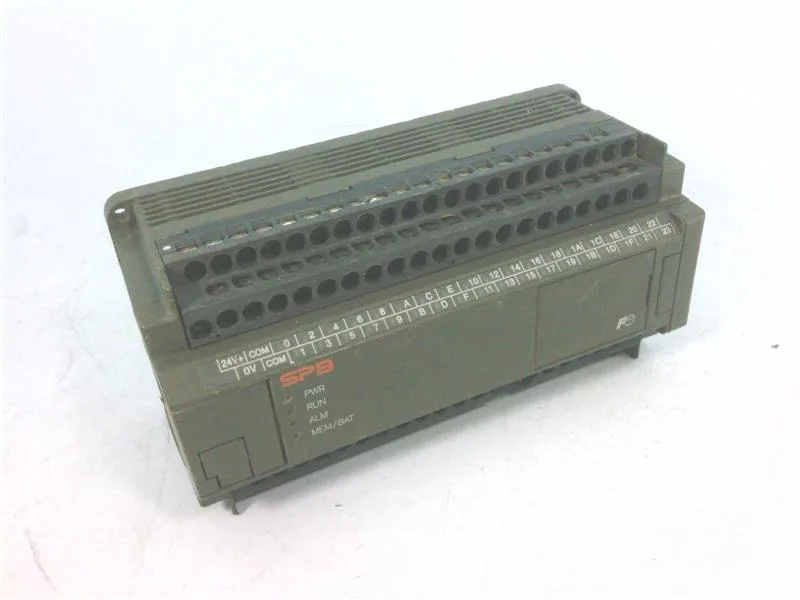

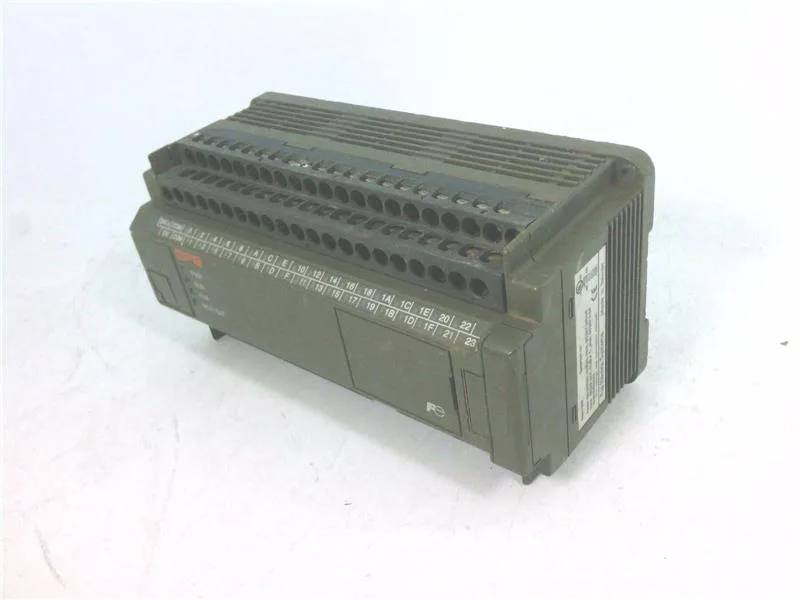

FUJI NW0P60T-31 Basic Unit, 60-Point, 100-240 VAC / 24 VDC
MPNNW0P60T-31
FUJI NW0P60T-31 Basic Unit, 60-point I/O, 100…240 VAC / 50/60 Hz / 75 VA or 24 VDC / 300 mA power supply.
$1,688.66Ref. price · indicative, final on quote
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for machine-down parts
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Sep 2026
Specifications
| Parameter | Value |
|---|---|
| Type | Basic Unit |
| Parameter | Value |
|---|---|
| Model | NW0P60T-31 |
| Weight | 0.68 kg |
| Condition | Used |
| Shelf no. | 220401 |
| Point unit | 60 |
| Power supply | 100…240 VAC / 50/60 Hz / 75 VA, 24 VDC / 300 mA |
| Input current | 5 mA |
| Input voltage | 24 VDC |
| Output current | 0.5 A |
| Output voltage | 24 VDC |
Product details
Frequently asked questions
What power supply options does the NW0P60T-31 accept?
It accepts either 100…240 VAC / 50/60 Hz / 75 VA or 24 VDC / 300 mA. Both supplies are listed on the spec; the unit can be powered from either source.
What are the input and output ratings?
Inputs are 24 VDC at 5 mA per point; outputs are 24 VDC at 0.5 A per point. These are the per-channel limits for the 60-point I/O capacity.
MPN
NW0P60T-31
