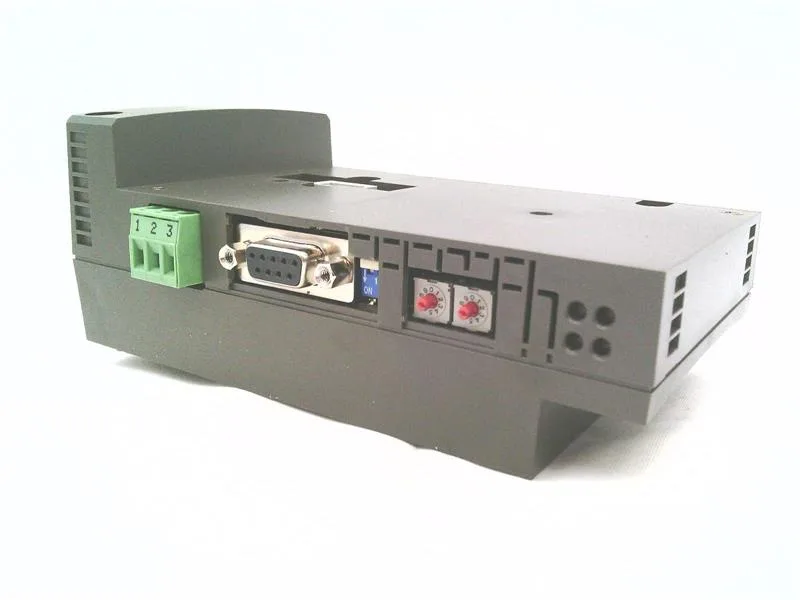

The OPC-G1-CCL is a Fuji CC-Link interface module designed for the MEGA series of drives. It handles the fieldbus communication between the drive and a CC-Link network, letting the drive exchange control words, speed references, and status data over the bus.
Integration Note
This module mounts directly onto the MEGA drive's option slot. The CC-Link interface uses the standard 5-pin screw terminal block for the bus connection. Set the station number via the rotary switches on the front panel before powering up the network.
