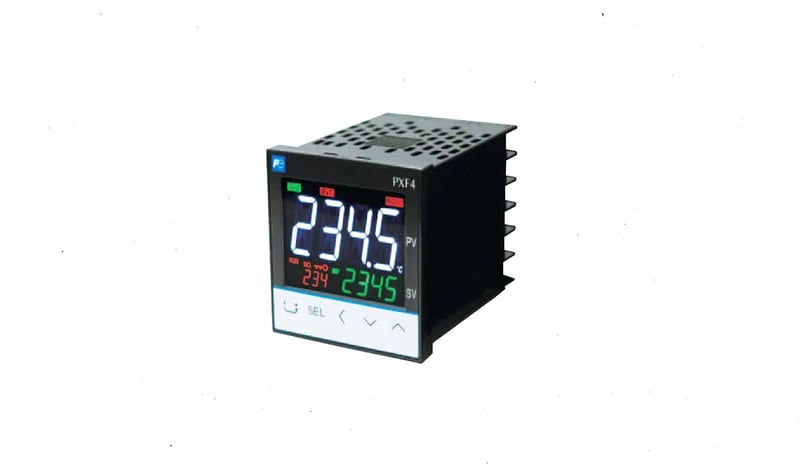

Micro-Controller x, PXF4BY2-1W100, universal AC/DC supply, single programmable-scale input, 50 ms sampling rate.
| Parameter | Value |
|---|---|
| Weight | 0.1 kg |
| Power supply | 100 V (-15%) to 240 V (+10%) AC, 50/60 Hz; 24 V (±10%) DC/AC |
| Product type | Micro-Controller x |
| Input setting | Programmable scale |
| Number of input | 1 |
| Power consumption | 10 VA MAX. (100 to 240 V AC), 3 VA MAX. (24 V DC/AC) |
| Withstand voltage | Power source ? all terminals: 1500 V AC for 1 min , Relay contact output ? all terminals: 1500 V AC for 1 min , Between others 500 V AC for 1 min |
| Input sampling rate | 50 ms |
| Insulation resistance | 20 MO or more (at 500 V DC) |
| Dimensions (L x w x h) | 5.8 cm x 4.8 cm x 4.8 cm |
| Temperature effect on sensitivity | ±0.3%FS/10°C |
Withstand voltage between power and all terminals is 1500 V AC for 1 minute, and relay contact output to all terminals is also 1500 V AC for 1 minute — standard isolation for a panel-mounted controller sharing a cabinet with contactors and drives. Insulation resistance is 20 MΩ or more at 500 V DC; temperature effect on sensitivity is ±0.3% FS per 10°C — stable enough for indoor process control without active compensation.
It accepts 100 V (-15%) to 240 V (+10%) AC at 50/60 Hz, or 24 V (±10%) DC/AC — universal enough for most control panels without a dedicated power supply module.
