Fuji Electric PXR Series, 1/32 DIN temperature controller, RTD Pt100 3-wire input, SSR drive + relay contact outputs, 100-240V AC supply, high/low alarm, North American Code programming.
| Parameter | Value |
|---|---|
| Type | PXR SERIES |
| Parameter | Value |
|---|---|
| Weight | 0.07 kgs |
| PROGRAMMING | North American Code |
| ALARM OUTPUT | High/low alarm 1 point |
| INPUT SIGNAL | RTD, Pt100 ohm, 3-wire type (°F) |
| POWER SUPPLY | Standard (100-240V AC, 50/60Hz) |
| CONTROL OUTPUT 1 | SSR drive output |
| CONTROL OUTPUT 2 | Relay contact output (SPST) |
| FRONT PANEL SIZE | 1/32 DIN (24x48mm) |

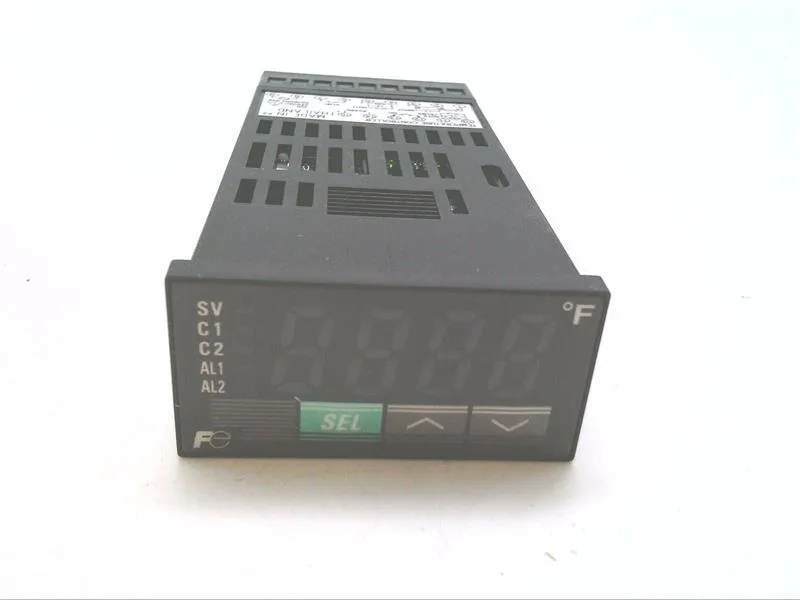

The Fuji Electric PXR3-SCA2-5V0A1 is a 1/32 DIN temperature controller from the PXR Series, sized for a 24x48mm panel cutout. The control side provides an SSR drive output for solid-state switching of heaters, plus a relay contact output (SPST) for on/off or secondary control. A single high/low alarm point is built in. Power is standard 100-240V AC, 50/60 Hz.
Within the PXR Series, the closest functional sibling would be a variant with a different input type (thermocouple) or output combination (e.g., relay-only). For an exact RTD Pt100 3-wire input with SSR drive plus relay output and 1/32 DIN form factor, this order code is the direct match — no pin-compatible alternative exists in the same series without changing the input or output configuration.
This part is sourced and quoted to order against an RFQ through independent distribution. Availability and current pricing are confirmed at quote time — submit an RFQ for a firm commitment.
