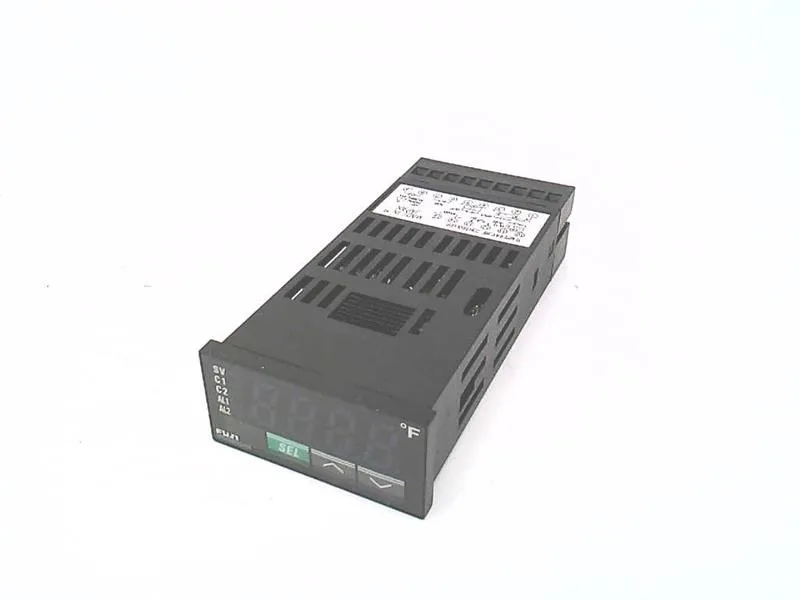

It accepts a 3-wire Pt100 RTD input and displays in °F, which is the North American programming variant. The control side gives you two outputs: a current output (typically 4-20 mA for driving a SCR or valve positioner) and a relay contact output (SPST) for on/off or alarm duties. Power is standard 100-240 V AC, 50/60 Hz.
Integration notes
Panel cutout for 1/32 DIN is 22.2 x 45 mm — verify the panel thickness (typically 1-3.2 mm) before committing the punch. The spring-cage terminals on the rear accept 0.2-1.5 mm² stranded wire; strip length 7-8 mm. The digital input (DI) can be configured for run/hold, alarm reset, or set-point switch — check the programming manual for the parameter map.
