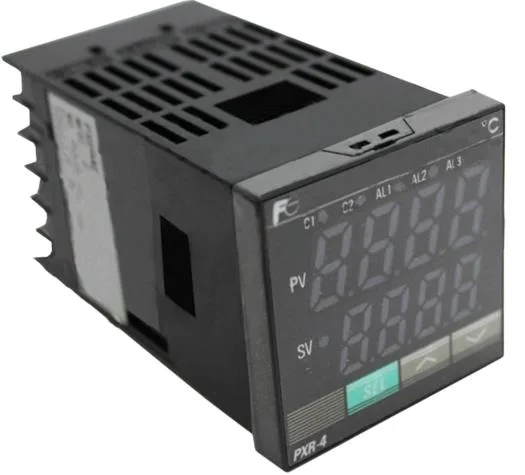

Fuji Electric PXR4TAS1-1V000
MPNPXR4TAS1-1V000
Digital Temperature Controller
$183.00 – $289.27Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
Sourced new & surplus through independent channelsListing updated Jun 2026
Specifications
Specifications
| Parameter | Value |
|---|---|
| Socket | 0 0 0 = None |
| Weight | 0.2 Kg |
| Input signal | T = Thermocouple (°C) |
| Product type | Analog Input Interface Modules |
| Revision code | 1 |
| Terminal form | S = Socket type |
| Control action | PID control (with auto tuning and self tuning) Fuzzy control (with auto tuning) Self tuning |
| Control output 1 | A = Relay contact output |
| Front dimensions | 4 = Power supply voltage Power conumption 48 x 48mm |
| Power consumption | When using 100 V AC : 8 VA or less, 220 V CA : 10 VA and 24 V AC/DC : 10 VA |
| Operating temperature | - 10°C to 50°C |
| Power supply voltage | 100 V (-15%) to 240V (+10%) AC, 50/60Hz or 24 V (±10%) AC 50/60Hz, 24V (±10%) DC |
| Optional specifications | 1 = Alarm (1 pc.) |
| Process i (O communications) | Communicates with its associated FCM or FCP via the redundant 2 Mbps module Fieldbus. |
MPN
PXR4TAS1-1V000
