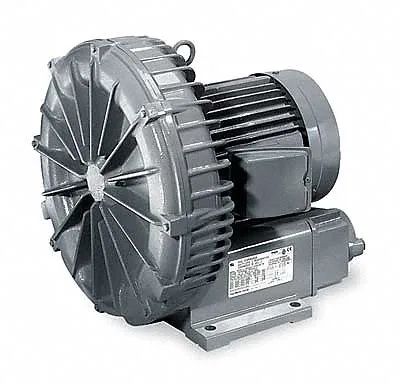

The FUJI ELECTRIC VFC100A-7W is a regenerative blower — listed as a Ring Compressor — rated 0.16 hp output, delivering up to 27 cfm at a maximum vacuum of 25 in wc and a maximum operating pressure of 26.4 in wc. That 0.16 hp figure tells you this is a low-power unit sized for light-duty air movement or vacuum pickup, not for bulk conveying or high-pressure aeration. The 27 cfm at 25 in wc vacuum means it can hold a modest suction on a pick-and-place nozzle or a small filtration circuit. Three-phase input at 200-230/460V AC, 60 Hz. Current draw is 0.53-0.52 A on low voltage and 0.27-0.26 A on high voltage.
Construction and environment
Inlet and outlet are both 1-inch NPT female ports. Maximum ambient temperature is 104 °F with a maximum air temperature rise of 72 °F. Thermal protection is listed as Pilot Duty — meaning the internal thermal switch is rated to break a control circuit, not the motor's full-load current directly. In practice, you wire that switch into the contactor coil circuit so an over-temp condition drops the motor starter. Class B NEMA insulation is the standard 130 °C rise class; fine for continuous duty at the rated ambient.
